Protecting the Loop Where the Strand Connects

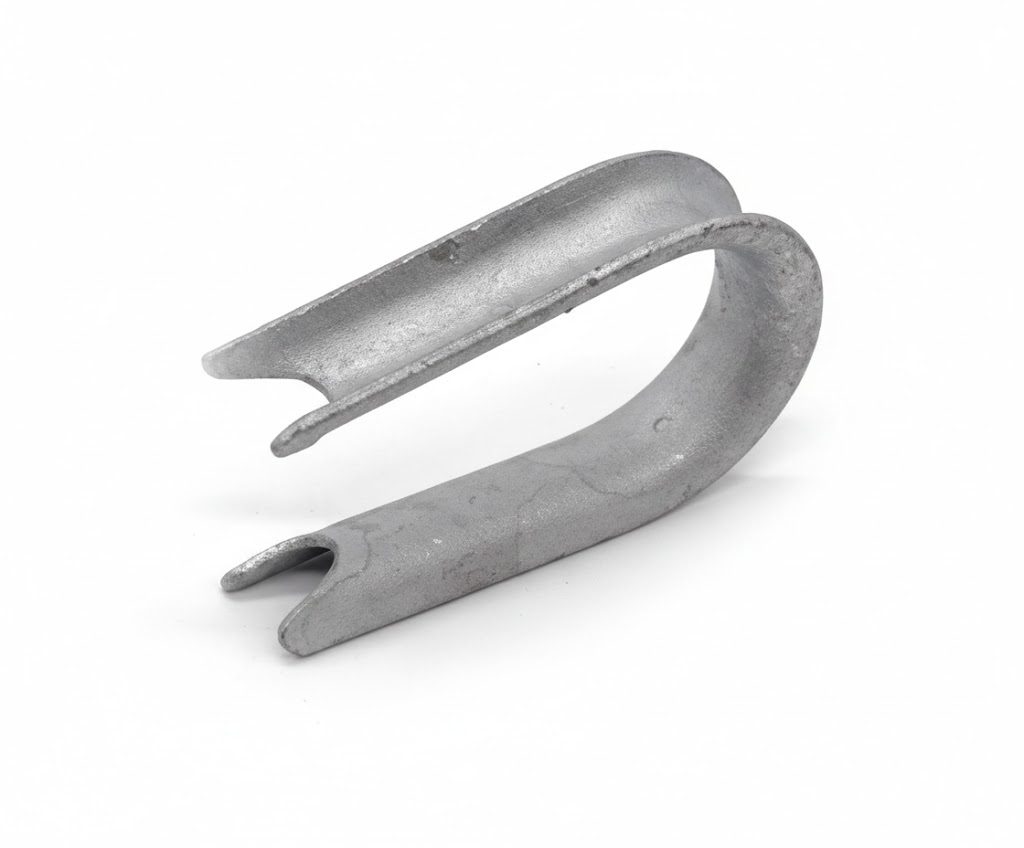

When a wire rope or guy strand is looped to make a connection around a shackle, a bolt, an anchor eye the loop is where it’s most vulnerable. Bent tight around a bare pin, the strand is crushed, kinked, and worn at that point, and it fails there first. A galvanized thimble prevents it: a grooved, heart-shaped fitting that sits inside the loop, so the strand bends around the thimble’s smooth groove instead of around the bare pin spreading the bend, protecting the strand, and keeping the loop’s strength.
It’s a small fitting doing an important job: it’s the difference between a loop that lasts and one that chafes through at the connection. This page covers galvanized thimbles: why the loop needs one, how it’s sized, and where it fits in the connection.
Why the Loop Needs a Thimble
A thimble protects the strand at the eye for three reasons:
- No crushing: Bent around a bare pin or shackle, the strand is pinched into a tight radius and crushed; the thimble gives it a smooth, correctly-radiused groove to bend around, so it isn’t pinched.
- No wear/chafing: The strand rubs against a bare pin as the connection moves; the thimble takes that wear on itself, protecting the strand.
- Keeps the loop’s strength: A crushed, kinked, or worn strand loses strength at the eye; a thimble keeps the loop close to the strand’s full strength.
So wherever a strand or rope is looped at a connection under load, a thimble in the eye is good practice it’s cheap insurance for the strand.
Standalone Thimble or Integral-Thimble Fitting?
A thimble can be a loose component you add, or built into a fitting:
- Galvanized thimble (this page) the standalone thimble, fitted into a loop and held by a separate guy clamp, grip, or seizing. Use it where the fitting doesn’t already have a thimble.
- Thimble clevis a clevis fitting with an integral thimble (the thimble is part of the fitting).
- Thimble eye bolt an eye bolt with an integral thimble eye.
If your connection fitting already has an integral thimble, you don’t need a separate one; where it doesn’t, the standalone galvanized thimble adds the loop protection. Tell us the connection and we’ll advise whether you need standalone thimbles or an integral-thimble fitting.

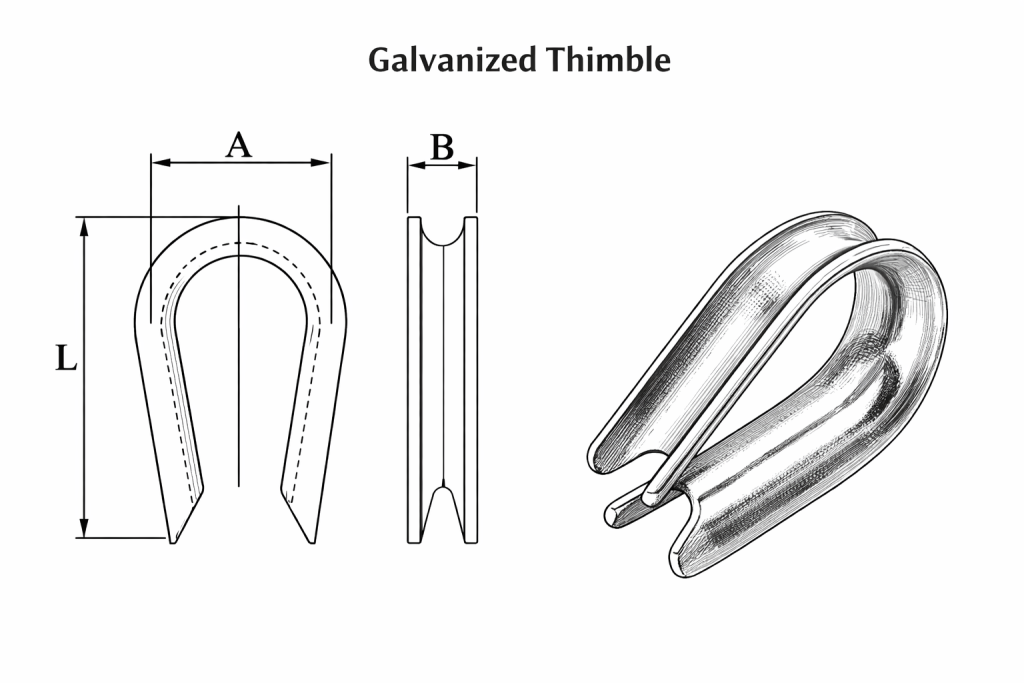

The Key Spec: Sized to the Strand
A thimble is sized to the strand or rope it lines its groove has to match the strand diameter so the strand seats in it correctly:
- A thimble sized for your strand seats it in the groove and protects it properly.
- A thimble too big or too small won’t seat the strand right, losing the protection.
So specifying a thimble means giving the strand/rope diameter. Send it and we supply the thimble sized to seat it.
Why Buyers Choose DAPENG Galvanized Thimbles
- Protects the loop: The smooth groove spreads the bend and takes the wear, protecting the strand and keeping the loop’s strength.
- Sized to your strand: The groove matched to your strand/rope diameter so it seats correctly.
- Galvanized for outdoor life: Coated for the outdoor connection environment, matched to the guy/rope hardware.
- Works with your connection: Fitted with a guy clamp, grip, or shackle the loose thimble for fittings without an integral one.
- Part of the connection set: Thimbles with the guy wire, clamps/grips, and shackles they protect matched and kitted.
Use-Case Deep Dive
Where do I use a standalone thimble?
Wherever a strand or rope is looped at a connection and the fitting doesn’t already have an integral thimble a guy strand looped to a shackle or anchor eye, a rope eye at a connection, a stay loop. The thimble goes inside the loop, the strand bends around it, and a clamp or grip holds the loop closed. Where your fitting is a thimble clevis or thimble eye bolt (integral thimble), you don’t need a separate one.
How do I size it?
By the strand/rope diameter the groove has to match the strand so it seats correctly. Send the strand size and we supply the thimble to fit. A thimble the wrong size won’t seat the strand right, so the size match is the spec to get right.
Do I need one if I’m using a preformed guy grip?
Not necessarily a preformed guy grip forms its own protected loop and often includes or integrates the thimble function. The standalone thimble is mainly for bolted/clamped loops where the strand bends around a shackle or pin and needs protecting. Tell us your termination method and we’ll advise whether a separate thimble is needed.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Function | Lines a strand/rope loop | Protects the loop from crushing/wear |
| Size | To your strand/rope diameter | Seats the strand correctly |
| Type | Standalone (vs integral-thimble fittings) | Adds protection where none is built in |
| Material | Steel | Durable in the connection |
| Finish | Galvanized | Outdoor life (confirm HDG) |
| Pairing | With clamp/grip/shackle | Completes the protected loop |
Straight Answers to Common Buyer Concerns
“Do I really need a thimble in the loop?” For a strand or rope looped under load around a bare pin or shackle, yes without a thimble the strand is crushed, kinked, and worn at the eye and fails there first; the thimble gives it a smooth groove to bend around, protecting it and keeping the loop’s strength. It’s cheap insurance for the strand. If your fitting already has an integral thimble (thimble clevis / thimble eye bolt), you don’t need a separate one.
“What size do I need?” The size that matches your strand or rope diameter the groove has to seat the strand correctly. Send the strand size and we supply the thimble to fit.
“Is it hot-dip galvanized?” The product is specified as galvanized for outdoor life we’ll confirm the exact finish (HDG or otherwise) to suit your environment, matched to the guy/rope hardware it works with.
Complete the Connection
- Guy wire the strand the thimble protects
- Guy clamps and guy grips the terminations that hold the loop
- Thimble clevis and thimble eye bolts fittings with integral thimbles
- U shackles the shackle the loop connects to
- Browse all pole line hardware and overhead line fittings
Get a Strand-Matched Quote Within 24 Hours
Send your strand or rope diameter, the connection/termination method, the finish you need, and quantities. Our team confirms the thimble size and finish, and returns a factory-direct quotation with the connection hardware alongside, typically within one working day.
After You Order
Size and finish confirmation before production, documentation with shipment, thimbles matched to your strand and connection hardware and kitted, and a contact who answers precisely because the thimble protects the loop where the strand connects, and getting the size right is what keeps the connection strong.
