The Spindle That Carries the Top Conductor at the Pole Tip

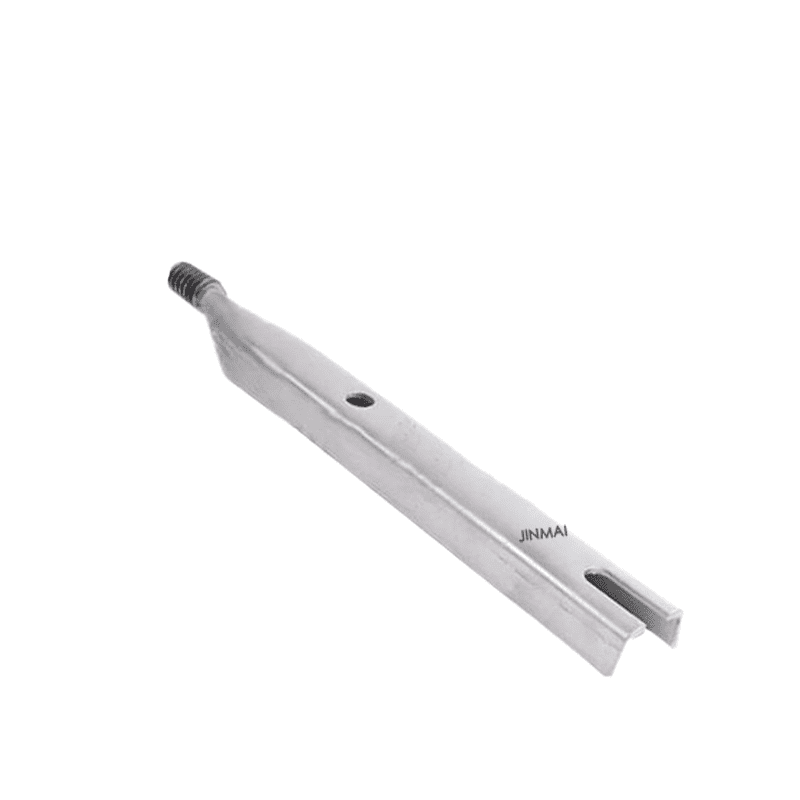

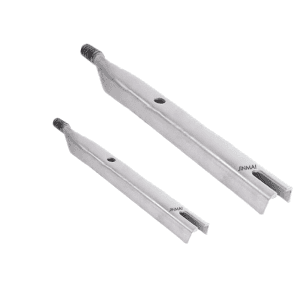

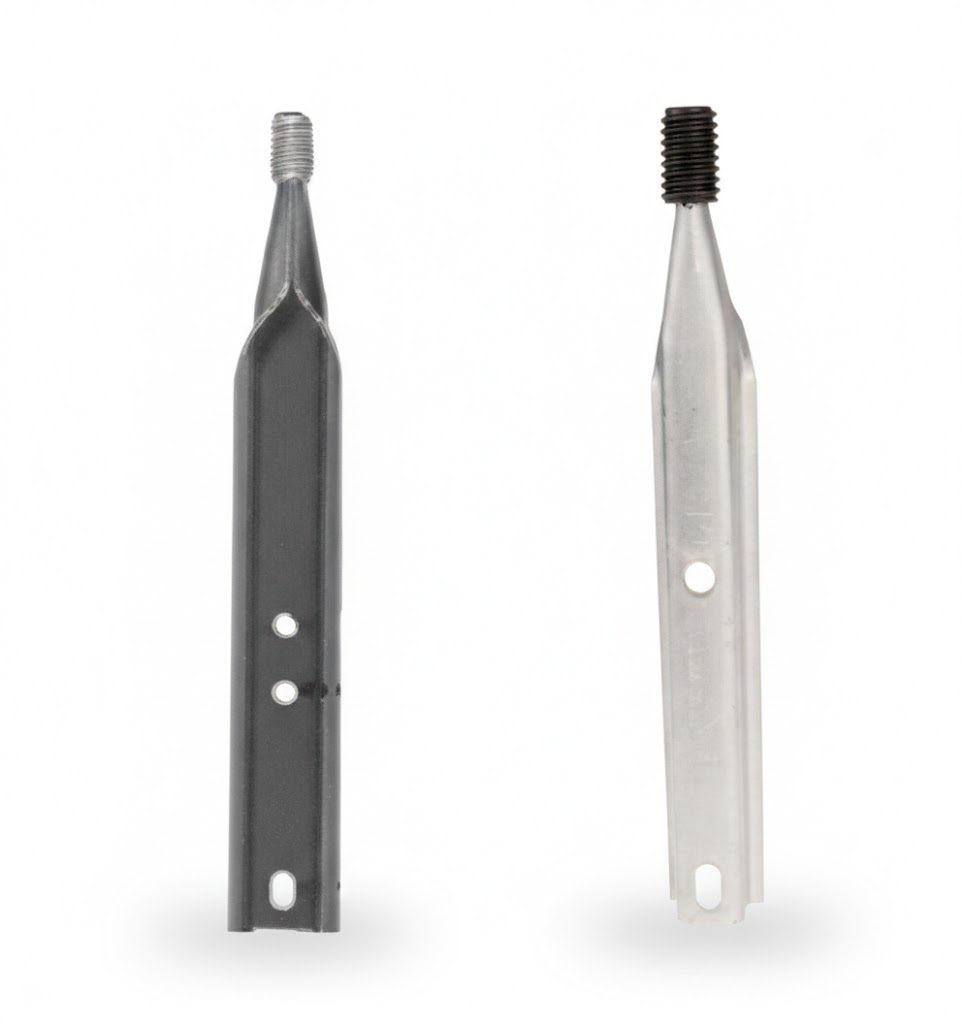

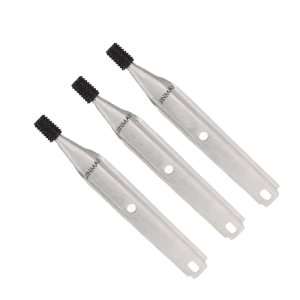

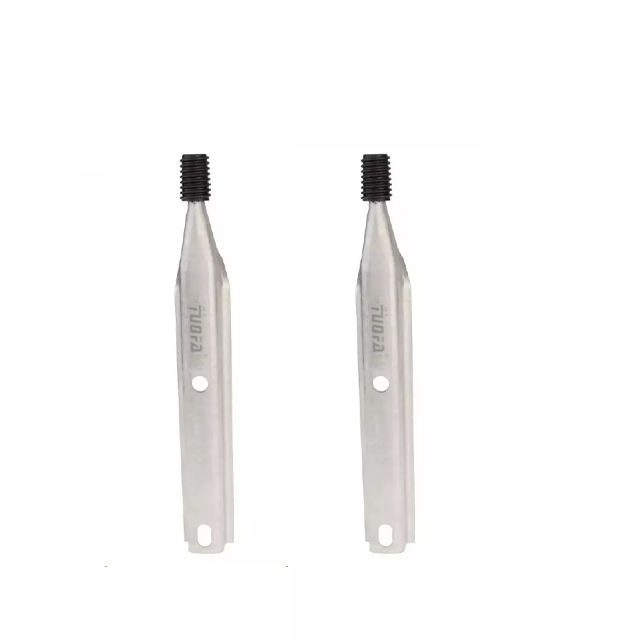

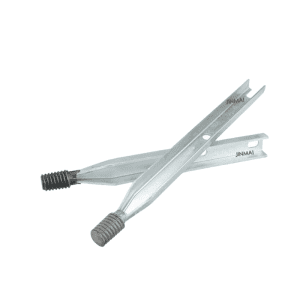

On many distribution structures, one conductor sits at the very top of the pole above the crossarm, at the highest point, and it needs an insulator up there to support it and hold it clear. That insulator needs something to screw onto: a pole top pin, the threaded spindle mounted at the pole tip that carries a pin (or post) insulator and, through it, the top conductor.
It’s a small component in a critical position: the highest, most exposed point on the structure, where the pin holds the insulator, the insulator holds the conductor, and all of it has to stay put through wind and decades of weather. This page covers pole top pins: how they mount, how the thread matches the insulator, and the sizes we make.
Pole Top Pin or Insulator Pin? Get the Mounting Right
The first thing to settle, because the two are easy to confuse and not interchangeable:
- Pole top pin (this page) mounts at the top of the pole itself, presenting the spindle at the pole tip for the top conductor’s insulator.
- Insulator pin mounts on a crossarm (through a hole in the arm), presenting the spindle out along the arm for the insulators there.
Both present the same kind of threaded spindle for a pin insulator; they differ in where they mount pole tip vs crossarm. A structure often uses both: pole top pins for the top conductor, insulator pins for the conductors on the arm. Order by position, and we’ll supply each for its location.
The Lead Thread: Matching the Pin to the Insulator

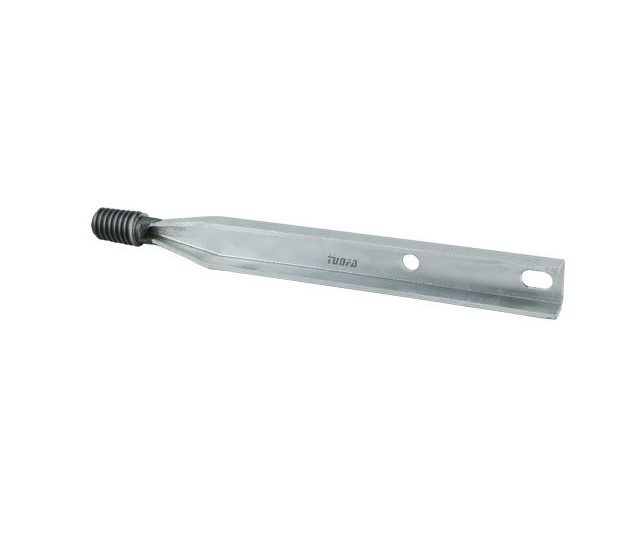

The working end of a pole top pin is its lead thread the threaded spindle the insulator screws onto. This is the match that matters: the pin’s lead thread must fit the threaded socket in the base of your pin insulator, or the insulator won’t seat properly.
Lead threads come in standard sizes (our range includes the common 1″ and 1-3/8″ lead threads, among others), matched to the insulator’s socket. Specify the insulator you’re using or its socket thread and we supply the pin to match. Get this match right and the insulator seats firm and true; get it wrong and you have a pin and an insulator that don’t fit, discovered at the top of the pole.
Why Buyers Choose DAPENG Pole Top Pins
- Lead-thread matched to your insulator: The spindle thread sized to your pin insulator’s socket, so it seats firm confirmed against your insulator at RFQ.
- Hot-dip galvanized for the most exposed spot on the structure: Galvanized to ISO 1461 / ASTM A153 class coatings, because the pole top is the highest, wettest, most weather-beaten point on the pole and the pin lives there for decades.

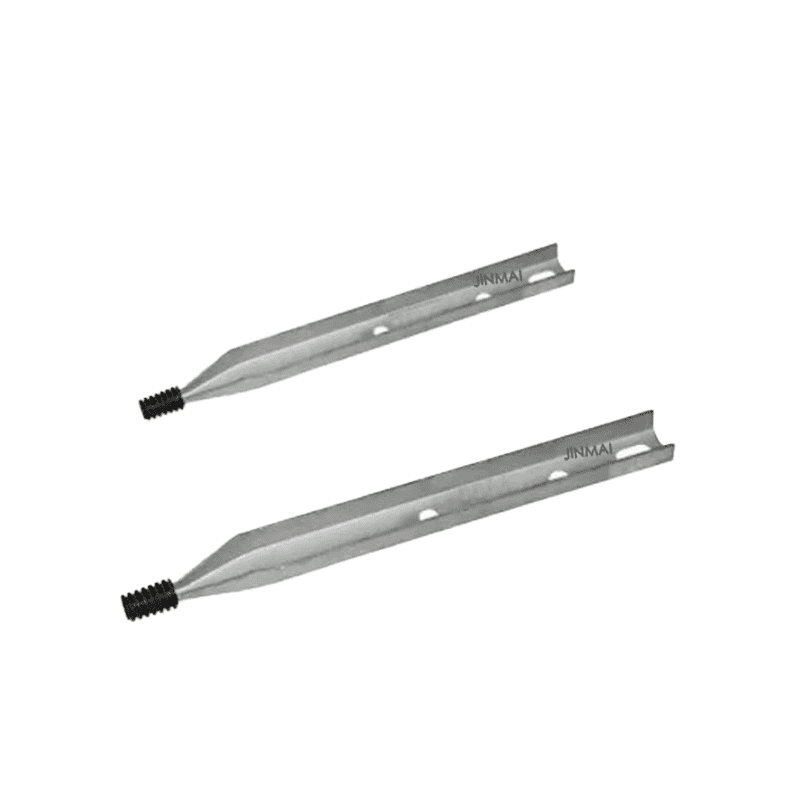

- Mounted to your pole top: The base form sized to mount at your pole tip bolted, strapped, or as your structure requires.
- Sized and dimensioned to the catalog range: Standard sizes with the dimensions your design needs, or made to your drawing.
- Supplied with the insulator and structure hardware: Pins with the pin insulators, insulator ties, and crossarm hardware they work with matched and kitted.
Use-Case Deep Dive
Where is a pole top pin used?
At the top of a distribution pole, carrying the topmost conductor’s insulator. On a typical structure, the top conductor sits above the crossarm on a pin or post insulator, and the pole top pin is the spindle that insulator mounts on. The conductors on the crossarm below use insulator pins mounted through the arm. Together they carry the conductors at their design spacing, top and arm. Tell us the structure and we’ll supply the pins for each position.
How do I match the pin to my insulator?
By the lead thread the spindle thread must fit the insulator’s threaded socket. Read the socket thread off your pin insulator’s datasheet (or tell us the insulator), and we supply the pin with the matching lead thread. The pin’s base/mounting is then matched to your pole top. Two matches thread to insulator, base to pole and the pin seats the insulator firm at the top of the structure. Send the insulator and the pole-top detail and we confirm both.
Do you supply the insulator and tie as well?
Yes the pole top pin, the pin insulator it carries, and the insulator tie that secures the conductor to the insulator come as a matched set, so the top of the structure assembles complete. Buying them together means the thread matches, the insulator seats, and the tie fits no mismatched parts at the highest point on the pole.

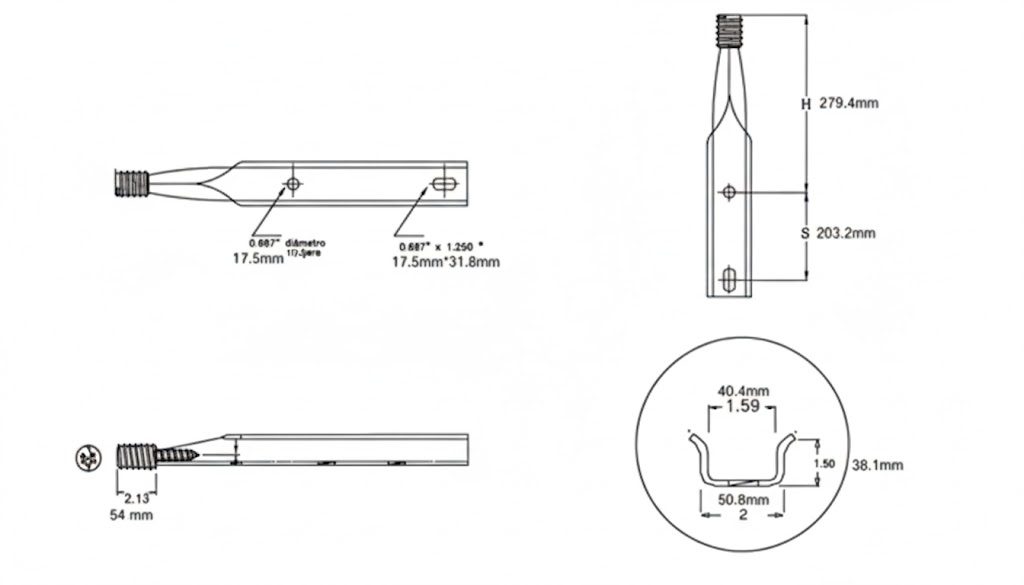

Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Lead thread | Standard sizes (1″, 1-3/8″, others) | Matches your insulator’s socket; seats firm |
| Mounting | Base form to your pole top | Mounts correctly at the pole tip |
| Material & coating | HDG to ISO 1461 / ASTM A153 class ] | Survives the most exposed spot on the structure |
| Sizes | Catalog range or to drawing | Dimensioned to your design |
| Pairing | With pin insulators and ties | Top of the structure assembles complete |
Straight Answers to Common Buyer Concerns
“I’m not sure if I need a pole top pin or a crossarm insulator pin.” Simple test: if the insulator mounts at the top of the pole, it’s a pole top pin; if it mounts on the crossarm, it’s an insulator pin. Most structures use both pole top pin for the top conductor, insulator pins along the arm. Tell us the structure or send a sketch and we’ll supply the right pin for each position, so nothing arrives for the wrong location.
“How do I make sure the insulator will fit the pin?” Match the lead thread to the insulator’s socket send us the insulator (or its socket thread) and we supply the pin cut to fit. This is the one match that stops an installation if it’s wrong, and it’s confirmed at RFQ, not discovered at height. If you’re buying the insulators from us too, the match is guaranteed.
“Can you match a legacy pin or a utility standard?” Send the standard, the dimensions, or a sample. Manufacturing pole top pins to a utility’s specification (lead thread, base, dimensions, grade) is routine export work, with confirmation before production.
Complete the Structure Top
- Pin insulators and post insulators what the pin carries
- Insulator pins the crossarm-mounted counterpart
- Insulator ties securing the conductor to the insulator
- Steel cross arms, D brackets, post insulator brackets the structure below
- Insulators the full insulator range
- Browse all pole line hardware and overhead line fittings
Get an Insulator-Matched Quote Within 24 Hours
Send the insulator you’re using (or its socket thread), the pole-top mounting detail, and your quantities or the structure standard. Our team confirms the lead thread and base, and returns a factory-direct quotation with the insulators and ties quoted alongside, typically within one working day.
After You Order
Thread and mounting confirmation before production, galvanizing certificates with shipment, pins kitted with their insulators and ties, and an engineering contact who answers quickly because the pole top is the highest point on the structure, and getting the pin and insulator matched means one trip up, not two.
