Description
The Fixed Mounting Point for Everything on the Pole
Almost everything mounted on a pole a crossarm, a bracket, a secondary rack, a street light arm, a guy attachment, a piece of equipment needs a solid, fixed point on the pole to attach to. The pole band provides it: a steel band that wraps around the pole, bolts together to clamp it tight, and carries mounting lugs with bolt holes for the hardware. Clamp the band on, and you have a rigid attachment point exactly where you need it.
It’s the universal pole-mounting fitting: simple, strong, and the thing that lets the rest of the hardware attach without drilling or notching the pole. This page covers pole bands: how they mount, the pole-diameter fit that matters, and the lug options for what you’re mounting.
How the Pole Band Mounts and Why the Fit Matters
The pole band clamps the pole and provides lugs:
- The band (one or two pieces) wraps the pole and bolts together, tightening around it to clamp firmly no drilling or notching the pole.
- The lugs/ears carry the bolt holes that the hardware (crossarm, bracket, arm) bolts to.
- Clamped tight, the band won’t slip under the load of what it carries, holding the mounting point fixed.
The critical spec is the pole-diameter fit: the band has to match the pole’s diameter at the mounting height and because poles taper from butt to tip, the diameter at, say, the crossarm height is smaller than at the base. A band sized for the wrong diameter won’t clamp tight (too big) or won’t close (too small). So the band is specified to the pole diameter where it mounts. Give us the pole diameter at the mounting height and we supply the band that clamps tight.
Lugs: Matched to What You’re Mounting
The band’s lugs (the ears with bolt holes) are what the hardware attaches to, and they come in configurations:
- 2-lug a mounting point on opposite sides (e.g. for a through-bolted crossarm or a single bracket).

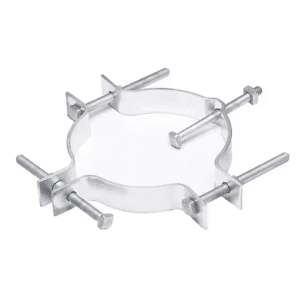

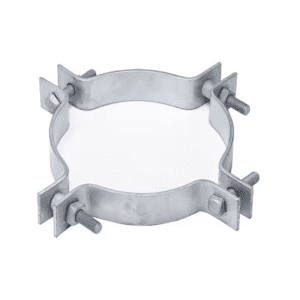

- 4-lug (as shown) four mounting points, for hardware needing more attachment points or a crossarm bolted at multiple points.
- The lug hole pattern and bolt size match the hardware’s fixing.
Match the lug configuration to what you’re mounting: a simple bracket may need 2 lugs, a crossarm or a heavier fitting may use 4. Tell us what the band is mounting and we’ll supply the right lug pattern.
Why Buyers Choose DAPENG Pole Bands
- Clamps tight to your pole: Sized to your pole diameter at the mounting height, so it grips firm and won’t slip.
- Lugs for your hardware: 2-lug, 4-lug, and the hole pattern to match the crossarm, bracket, rack, or arm you’re mounting.
- No drilling the pole: Clamps around the pole no drilling or notching that would weaken it, and re-position able if needed.
- Hot-dip galvanized: Galvanized for outdoor life, matched to the hardware it carries.
- Mounts the whole structure: Pole bands with the crossarms, brackets, racks, arms, and bolts they carry matched and kitted.
Use-Case Deep Dive
How do I size the pole band to the pole?
By the pole diameter at the mounting height not the base. Poles taper, so measure (or take from the pole schedule) the diameter where the band will clamp, and we supply the band sized for that diameter so it clamps tight. A band too big won’t grip; too small won’t close. If your poles vary, an adjustable/bolted band can cover a range. Send the pole diameter at the mount and we’ll match the band.
2-lug or 4-lug which do I need?
By what you’re mounting: a 2-lug band gives mounting points on opposite sides (for a through-bolted crossarm or a single bracket); a 4-lug band (as shown) gives four points for hardware needing more attachment or a multi-bolt crossarm. Tell us the hardware (crossarm, bracket, rack, arm) and its fixing and we’ll supply the right lug configuration and hole pattern.
Can I mount a crossarm, a bracket, and a light on the same pole?
Yes pole bands at the appropriate heights give each a fixed mounting point. A band at the crossarm height mounts the crossarm and its braces; another mounts a secondary rack lower down; another a street light arm. Each band sized to the pole diameter at its height. We supply the bands and the hardware together, sized per position, so the whole pole assembles from one source.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Function | Clamps pole, provides mounting lugs | Fixed attachment point, no drilling |
| Pole fit | To diameter at mount height | Clamps tight; won’t slip |
| Lugs | 2-lug / 4-lug + pattern | Mounts your hardware |
| Section | Steel band, sized to load | Holds the mounted load |
| Coating | HDG | Outdoor life, matched hardware |
| Bolts | Band + lug bolts | Clamps and mounts securely |
Straight Answers to Common Buyer Concerns
“How do I get the right size for our poles?” By the pole diameter at the mounting height poles taper, so the diameter where the band clamps (say, at crossarm height) is what matters, not the base. Send that diameter (or the pole schedule) and we supply the band to fit it tight. If your poles vary, an adjustable band can cover a range.
“2-lug or 4-lug?” By the hardware: 2-lug for a through-bolted crossarm or single bracket; 4-lug for hardware needing four attachment points or a multi-bolt crossarm. Tell us what you’re mounting and its fixing and we’ll match the lugs and hole pattern.
“Can you supply the bands with the crossarms and brackets?” Yes pole bands with the crossarms, braces, brackets, racks, arms, and bolts, sized per position and kitted, so the whole pole assembly comes matched from one source.
Complete the Structure
- Steel cross arms and flat crossarm braces the arms the band mounts
- D brackets the bracket the band carries
- Secondary racks and street light arms other pole-mounted hardware
- Square head machine bolts, double arming bolts the mounting bolts
- Browse all pole line hardware and overhead line fittings
Get a Pole-Matched Quote Within 24 Hours
Send your pole diameter at the mounting height(s), what you’re mounting (and its fixing), the lug configuration, and quantities. Our team confirms the band size, lugs, and bolts, and returns a factory-direct quotation with the mounted hardware alongside, typically within one working day.
After You Order
Band size, lug, and bolt confirmation before production, galvanizing documentation with shipment, bands sized per pole position and kitted with the hardware they mount, and a contact who answers precisely because the pole band is the fixed point everything on the pole attaches to, and getting the pole-diameter fit and the lugs right is what holds the structure securely.
