Bonding an Earth Connection to a Strand

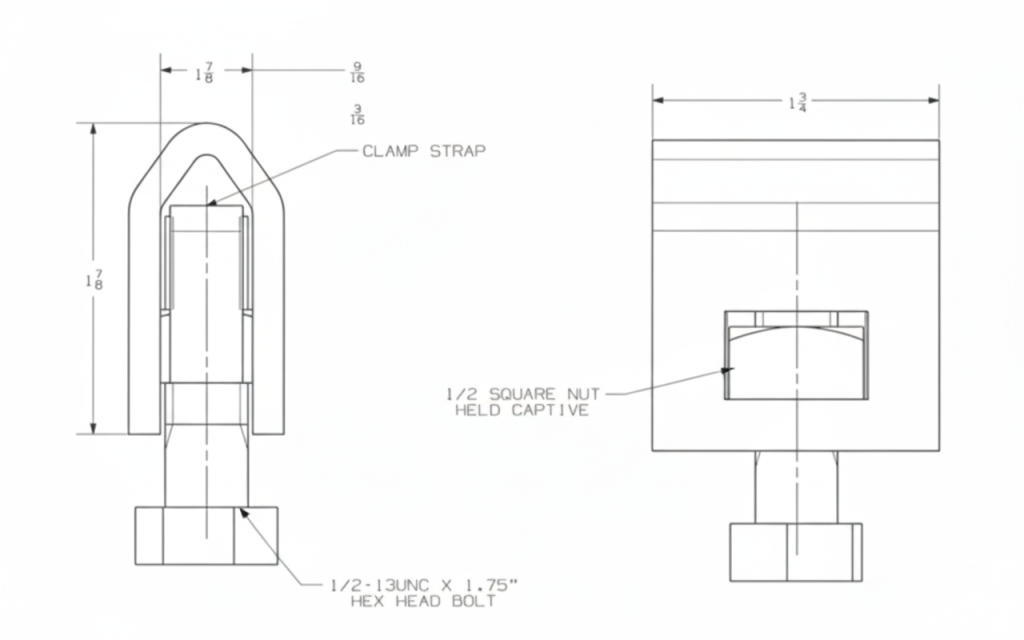

Some earth connections are made not to a rod or a steel member, but to a strand an overhead earth (ground) wire strung along a line, a messenger strand carrying cable, or a guy strand that needs bonding. Making that connection is the job of the strand ground clamp: a bolt-tightened clamp with a saddle that grips the strand and bonds an earth conductor to it, giving a solid mechanical and electrical connection on the wire.
It’s the strand-surface member of the grounding-clamp family, with the same job (a reliable earth bond) as a rod or beam clamp, but matched to a strand. This page covers strand ground clamps: what they bond, where they fit among the grounding clamps, and the material point that keeps the bond good.
What It Bonds Overhead Earth Wire, Messenger, or Guy
A strand ground clamp connects an earth conductor to a strand at points like:
- An overhead earth (ground) wire bonding a down-lead or an earth connection to the earth wire strung along a line.
- A messenger strand bonding the messenger that supports a cable to the earthing system.
- A guy strand bonding a guy to earth where the design requires it.
In each case the clamp grips the strand with its saddle and takes the earth conductor, tightening down with a bolt to make the bond. It’s the clamp for wherever the earth connection lands on a strand rather than a rod or a structure.
Which Grounding Clamp? The Surface Decides
Earth conductors bond to different surfaces, and the clamp follows this completes the set:
| Clamp | Bonds the earth conductor to | |
|---|---|---|
| Strand ground clamp (this page) | A strand / wire | Overhead earth wire, messenger, guy |
| Ground rod clamp | A ground rod | The earth electrode |
| I-beam grounding clamp | A steel flange | Structural steel |
If you’re bonding to a strand, this is the clamp; to the ground rod, the rod clamp; to structural steel, the I-beam clamp. Tell us the surface and the earth conductor and we’ll supply the right one.
The Material Point: Match the Clamp to What It Touches
This is the point to get right on any grounding clamp, and it needs care here specifically:

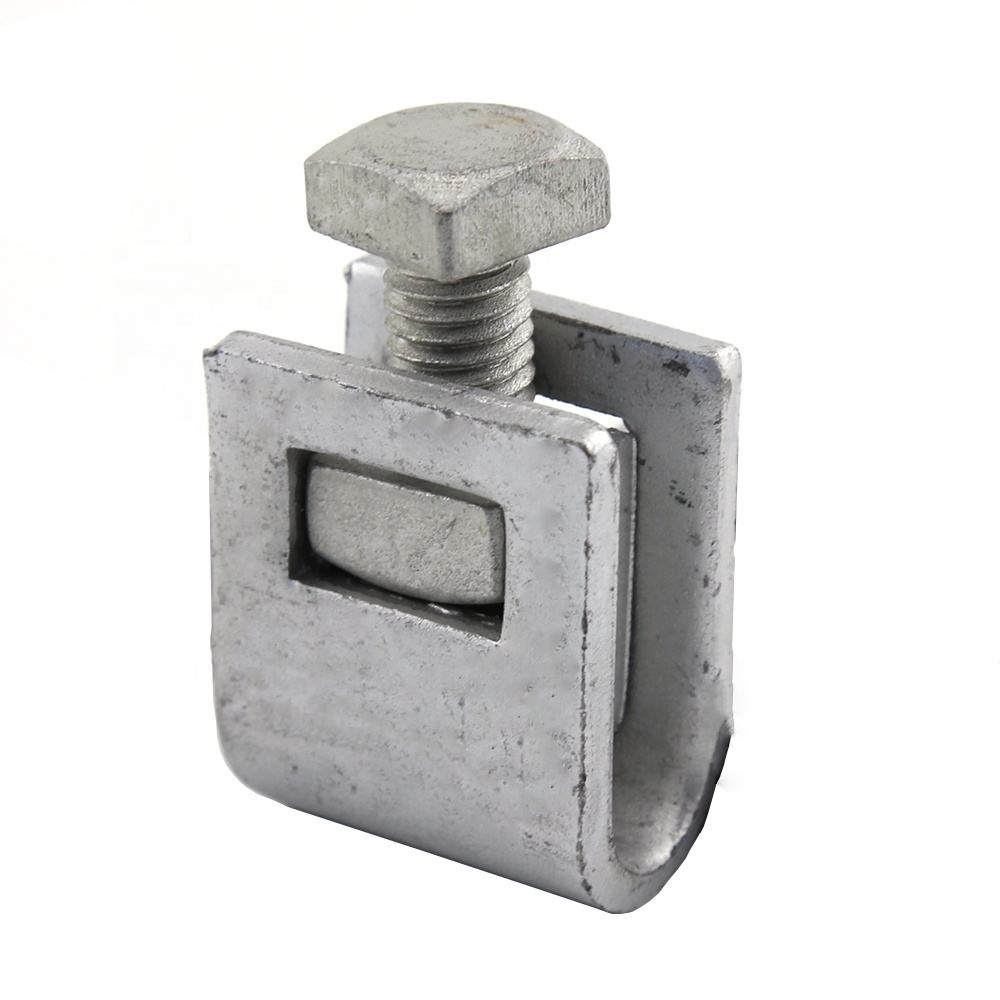

- The clamp shown appears galvanized steel. That’s a good, compatible match for a galvanized-steel strand steel to steel, no galvanic couple, a durable bond.
- But if the earth conductor or strand is copper, a galvanized-steel clamp creates a steel-to-copper galvanic couple that corrodes the connection over time and raises its resistance a failing earth bond.
So the clamp material has to suit both the strand and the earth conductor it joins. For a galvanized-steel strand and a compatible conductor, the galvanized clamp is right; for a copper earthing system, a copper-alloy clamp is the correct choice. We supply the material that matches your connection, and we’ll flag a compatibility concern rather than ship a bond that will corrode.
Why Buyers Choose DAPENG Strand Ground Clamps
- Material matched to your connection: Galvanized for a steel strand, or the compatible material for your conductor so the bond doesn’t corrode.
- Sized to your strand and conductor: The saddle to your strand diameter, the seat to your earth conductor confirmed at RFQ.
- Solid bolt-tightened bond: A metal-to-metal connection tightened with a bolt for a lasting, low-resistance earth on the strand.
- Rated for the duty: For the fault/lightning current the earth path must carry on tested figures.
- Part of the earthing set: Strand clamps with the ground rods, rod clamps, I-beam clamps, and couplings of the earthing system from one source.
Use-Case Deep Dive
Where is a strand ground clamp used?
Wherever an earth connection is made to a strand rather than a rod or a structure: bonding to an overhead earth wire, bonding a messenger strand that carries cable, or bonding a guy strand to earth where required. It’s common where the earthing or bonding point is on a wire strung between structures, and a saddle clamp is the practical way to make a solid connection to it.
How do I know the bond will last?
Two things the same two that govern any earth bond: a solid metal-to-metal contact (the bolt tightens the saddle to clamp the strand and conductor firmly), and a compatible material (so the bond doesn’t corrode). The material match matters most here because the clamp shown is galvanized steel perfect on a steel strand, wrong on a copper conductor. Tell us the strand and conductor and we supply the clamp that stays good. A grounding bond is only as good as its contact and its resistance to corrosion.
Strand clamp, rod clamp, or I-beam clamp?
By what you’re bonding to: strand/wire → this strand ground clamp; ground rod → rod clamp; steel flange → I-beam clamp. Same earth-bond job, matched to the surface. Tell us the surface and the earth conductor and we’ll point you to the right one that’s the whole grounding-clamp family from one source.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Bonds to | A strand / wire | Earth connection on the strand |
| Strand range | To your strand diameter | Grips your strand solidly |
| Conductor | Seat to your earth conductor | Terminates your earth conductor |
| Material | Matched to strand + conductor | Stays conductive; no galvanic corrosion |
| Install | Bolt-tightened saddle | Solid, lasting bond |
| Rating | Fault/lightning current | Carries the earth-fault duty (tested) |
Straight Answers to Common Buyer Concerns
“What material should the strand ground clamp be?” It has to match both the strand and the earth conductor. For a galvanized-steel strand with a compatible conductor, the galvanized clamp shown is right steel to steel, no corrosion couple. For a copper earthing system, you want a copper-alloy clamp, because a galvanized-steel clamp on copper creates a galvanic couple that corrodes the bond and raises its resistance. Tell us the strand and conductor and we’ll confirm the correct material on an earth bond it’s a safety matter, not a finish.
“Can it bond to our overhead earth wire / messenger / guy?” Yes the saddle grips the strand and the clamp takes the earth conductor, bolt-tightened for a solid bond. Send us the strand type and diameter and the earth conductor size, and the clamp is matched to grip that strand and terminate that conductor.
“Which clamp for our connection?” By the surface: strand → this clamp; rod → rod clamp; steel → I-beam clamp. Tell us what the earth conductor bonds to and we’ll supply the right member of the family.
Complete the Earthing System
- Ground rods the earth electrode (the earthing hub)
- Copper grounding rods and HDG grounding rods the rod types
- Ground rod clamps and I-beam grounding clamps the other bonding clamps (rod, steel)
- Ground coupling rods extending the rod
- Guy wire the guy strand that may need bonding
- Browse all pole line hardware and overhead line fittings
Get a Strand-Matched Quote Within 24 Hours
Send your strand type and diameter, your earth conductor size, the material/compatibility you need, any current/fault rating, and quantities. Our team confirms the clamp, material, and fit, and returns a factory-direct quotation with the earthing hardware alongside, typically within one working day.
After You Order
Material, fit, and any rating confirmation before production, documentation with shipment, clamps matched to your strand and conductor, and an engineering contact who answers precisely because a grounding bond carries fault current to earth, and getting the material compatibility and the fit right is what keeps the earth connection on the strand safe.
