Distribution Grip

Description

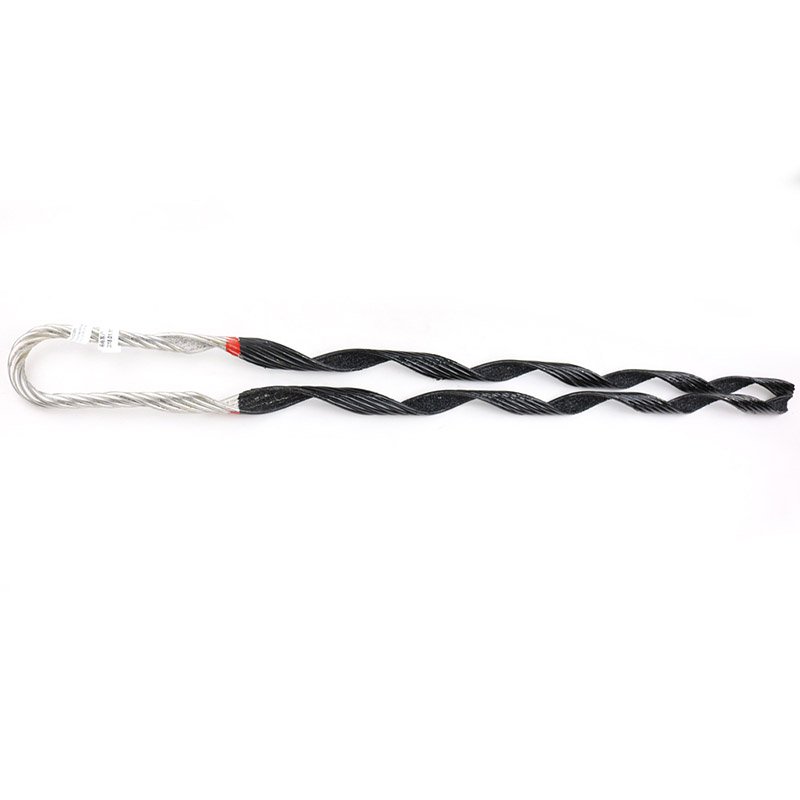

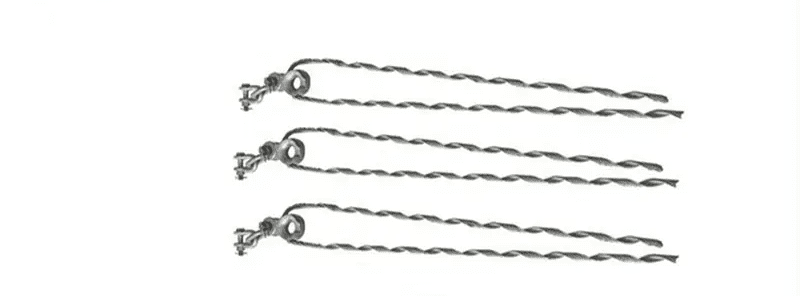

The Tool-Free Full-Strength Dead-End for Distribution Conductors

At a distribution dead-end where the line terminates at a pole, or ends a section, the conductor has to be anchored at its full strength, cleanly, and fast. The distribution grip does it the preformed way: a set of helical rods, pre-formed to your conductor’s exact size, that wrap along a length of the conductor and grip it through their form, developing the conductor’s strength over that length, with no bolts to torque and no single point of load.

It’s the distribution-scale member of the preformed dead-end family: the same helical principle that makes preformed fittings gentle on the conductor and quick to install, sized and rated for distribution conductors. This page covers distribution grips: how the preformed grip works, where it fits in the family, and why the conductor match is everything.

The Preformed Advantage, at Distribution Scale

A distribution grip grips the way every preformed fitting does, and it’s why utilities choose it over a bolted dead-end on distribution conductors:

• Full strength over length: The helical rods develop the conductor’s rated strength along the grip length, not at a single clamped point so the termination is as strong as the conductor, without necking or crushing it.
• No point load, gentler on the conductor: Distributed grip means no concentrated clamping stress, which matters for conductor life at the dead-end.
• Tool-free install: The rods are pre-formed to the conductor’s lay and diameter, so a lineman wraps them on by hand no torque wrench, no bolts, no compression tool. On distribution work, where dead-ends are many and crews move fast, that speed and simplicity add up.

The trade-off, as with all preformed fittings, is that a grip is made for one conductor size and generally isn’t reusable which is exactly why the conductor match matters so much (below).

Where the Distribution Grip Fits in the Preformed Family

The preformed dead-end/grip family sorts by what it terminates and at what scale:

If you’re dead-ending a distribution conductor, the distribution grip is the right, economical member. Heavier conductors or transmission dead-ends step up to the general dead end grip or preformed tension clamp; a guy is terminated with a guy grip, which grips strand, not conductor. Tell us what you’re terminating and at what scale and we’ll route you.

The One Spec That Can’t Be Approximated: The Conductor Match

A distribution grip is formed to one conductor size its rods are pre-shaped to a specific conductor diameter and lay. That makes the conductor match the single most important thing to get right:

• A grip made for your exact conductor wraps on cleanly and develops full strength.
• A grip for a neighboring size won’t grip correctly it’s the wrong part, not a near-enough one.

So specifying a distribution grip starts and ends with the conductor: its type (ACSR, AAC, AAAC, ACSR/AW, etc.), its diameter, and its stranding. Send the conductor datasheet and each grip is matched to it before production this is the spec we confirm in writing, because it’s the one that can’t be fudged in the field.

Why Buyers Choose DAPENG Distribution Grips

• Matched to your exact conductor: Formed to your conductor’s diameter, type, and lay a grip per conductor, confirmed at RFQ.
• Full-strength, tested: Develops the conductor’s rated strength over the grip length, batch-tested with documentation.
• Corrosion-matched to the conductor: Formed wire specified for the conductor’s metallurgy aluminum-based for aluminum conductors so the grip and conductor age together without a galvanic couple.
• Tool-free, error-resistant: Wrapped on by hand; the correctness lives in the manufactured form, so it’s hard to install wrong on a fast-moving distribution build.
• Matched to the dead-end assembly: Distribution grips with the thimble/eye and structure hardware they connect to from one source.

Use-Case Deep Dive

Distribution grip or bolted dead-end which for a distribution line?

Preformed distribution grips win where you want the conductor’s full strength developed without a point load, gentler conductor treatment, and tool-free install which suits a lot of distribution dead-end work. Bolted dead-ends (tension/strain clamps) win where crews want a re-openable, re-tension able, inspectable termination. Many distribution networks use preformed grips for their speed and conductor-friendliness. Send the conductor and the utility preference and we’ll advise we make both.

Can a distribution grip be reused?

Generally no like all preformed fittings, it’s formed to grip once, and removing it work-hardens and distorts the rods; reapplying a used grip isn’t good practice. Order the right quantity plus a sensible allowance rather than planning to reuse. If re-openability is a requirement, a bolted dead-end is the better choice. The single-use nature is the trade-off for the full-strength, tool-free, point-load-free grip.

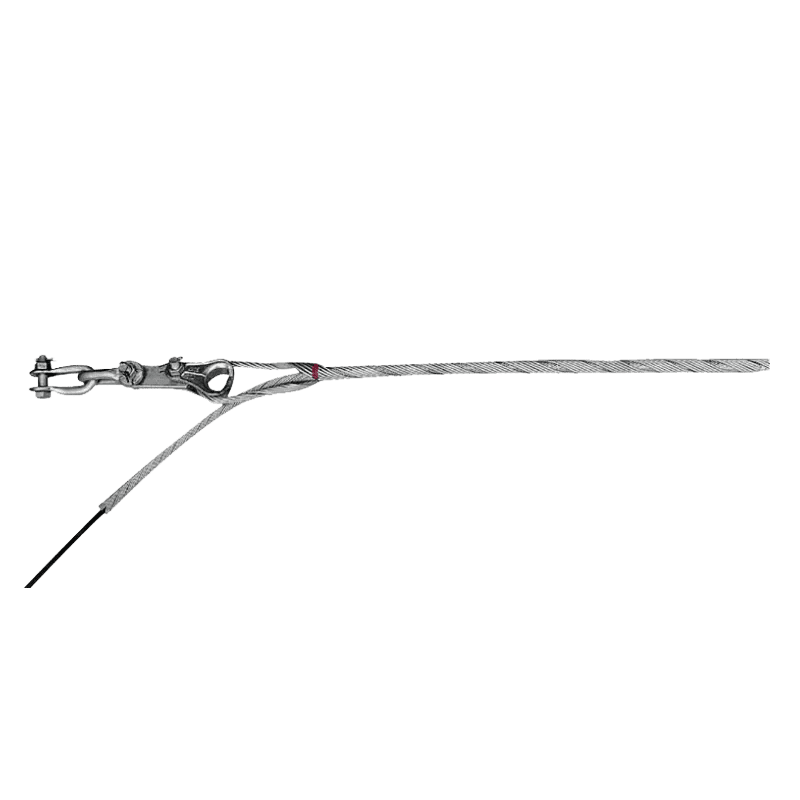

How does the distribution grip connect to the pole/structure?

The grip terminates the conductor and presents a loop or eye that connects to the dead-end hardware on the pole a thimble eye bolt or dead-end bracket on the structure. The grip does the conductor termination; the structure hardware takes it to the pole. We supply the grip with the connecting hardware matched, so the distribution dead-end assembles complete.

Specifications and What They Mean for You

Straight Answers to Common Buyer Concerns

“How do I make sure the grip matches my conductor?” Send the conductor’s type, diameter, and stranding (the datasheet is ideal) a distribution grip is formed to one conductor size, so we match it exactly and confirm it in writing before production. This is the one spec that can’t be approximated: a grip for a neighboring conductor won’t grip correctly. Get the conductor right and the grip does the rest.

“Is a preformed grip as strong as a bolted dead-end?” For terminating the conductor, yes a distribution grip develops the conductor’s rated strength over its grip length, batch-tested and documented, and it’s gentler on the conductor than a bolted point grip. The bolted dead-end’s advantage is re-openability, not strength. For a permanent full-strength distribution dead-end, the grip is a full-strength solution.

“Can you supply the whole dead-end?” Yes the distribution grip with the thimble/eye and structure hardware, matched and kitted, so the distribution dead-end assembles complete from conductor to pole.

Complete the Dead-End

• Dead end grips the broader/heavier preformed dead-end
• Preformed tension clamps the OPGW/transmission helical termination
• Guy grips and strand splices for guy strand (not conductor)
• Armor rods conductor protection at supports
• Thimble eye bolts the dead-end structure connection
• Bolt type tension clamps, strain clamps the bolted dead-end alternatives
• Preformed line fittings the full preformed family
• Browse all overhead line fittings and pole line hardware

Get a Conductor-Matched Quote Within 24 Hours

Send your distribution conductor (type, diameter, stranding), the dead-end hardware you connect to, and quantities. Our engineers confirm the grip to your conductor and return a factory-direct quotation with the dead-end hardware alongside, typically within one working day.

Request a Free Quote →

After You Order

Conductor-match confirmation before production, batch test reports with shipment, grips kitted with their dead-end hardware, and an engineering contact who answers precisely because a distribution grip is matched to one conductor, and getting that match right is the whole specification.
