The Coupling That Holds an Insulator String Together, and the Clip That Holds the Coupling

Ball-and-socket coupling is the elegant heart of insulator string design: a ball on one fitting drops into a socket on the next, articulates freely under wind and thermal movement, and carries the full string load through a compact, forged joint. No bolts to torque, no threads to seize, no alignment to fuss over at height.

But that elegance rests on one small component, the retaining clip. A split pin or W-clip inserted through the socket, locking the ball in place. It is the only thing preventing the ball from lifting back out of the socket, and it is fitted by hand, at height, by a crew working through dozens of strings a day.

Which is why a socket eye page that only lists dimensions is missing the important half of the specification. This one covers both: the sizes and load classes, and what the coupling actually depends on.

What Is a Socket Eye, and How Is It Different From a Socket Clevis?

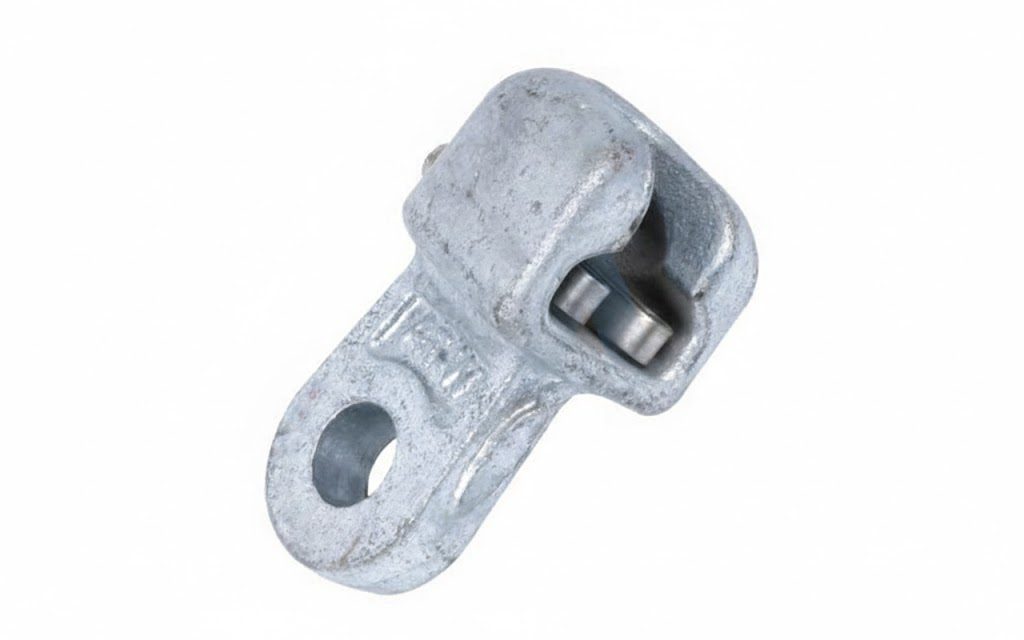

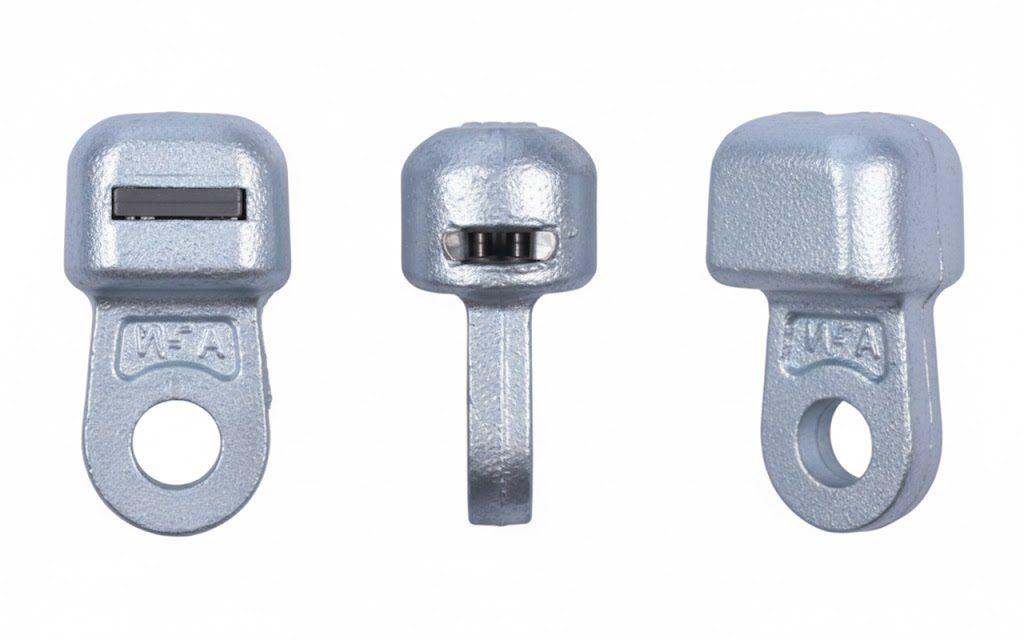

A socket eye is a coupling fitting with a socket at one end, which receives the ball of a ball-and-socket insulator, and a closed eye at the other end, which connects to eye-type hardware, hooks, or eye bolts. A socket clevis performs the same socket function but presents a clevis jaw with a removable pin instead of a closed eye, for connecting to tongue-type fittings.

The choice is decided entirely by what sits on the other side:

• Connecting to a hook, eye bolt, or another eye fitting → socket eye (this page)
• Connecting to a tongue-type fitting or a clamp with a tongue attachment → socket clevis

And at the opposite end of the string, the mirror-image fittings do the same job in reverse: a ball eye presents an eye to the structure and a ball to the first insulator; a ball clevis presents a clevis jaw and a ball. Four fittings, two coupling forms, one simple rule: match the form to the hardware it meets, and match the ball/socket designation to the insulator.

Send your insulator datasheet and string drawing with the RFQ, and every coupling in the chain is confirmed against its neighbors before production.

Specification Table

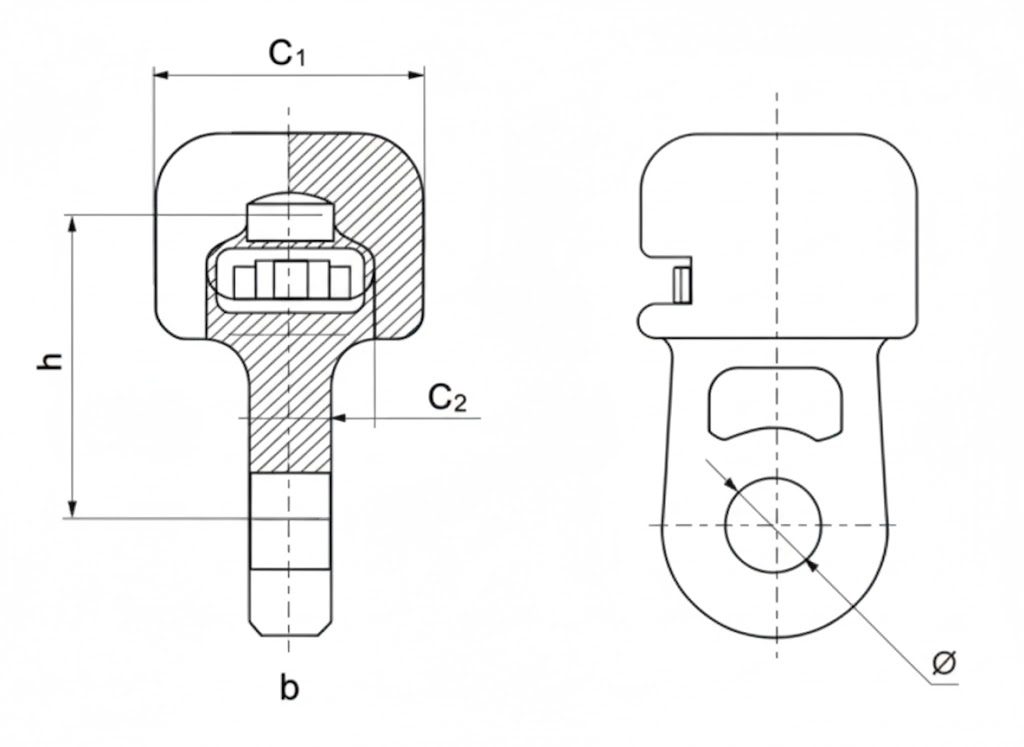

(Hot dip galvanized. Dimensions in mm, rated failing load in kN)

(The b dimension is omitted pending verification, see note above. Sizes outside this table are forged to your drawings.)

Reading the table: the designated coupling size is the controlling dimension, it must match your insulator’s ball designation exactly. Ball-and-socket couplings are standardized (IEC 60120 defines the common designations; 16 mm and 20 mm are the sizes most frequently specified on distribution and transmission strings). Note that several rows share coupling size 16 while differing in h and rated load: same coupling interface, different body length and load class. Specify both, coupling size and rated load, or you may receive a correctly-coupling fitting that caps your string.

How to Select in Three Checks

1. Coupling designation, from the insulator, not from habit: The socket must match the ball size on your insulator. A 16 mm socket will not accept a 20 mm ball, and a mismatch discovered on a tower is a day lost. Read it off the insulator datasheet and quote it on the RFQ.

2. Rated failing load, match the string, never undercut it: An insulator string is rated at its weakest component. Our matched-class range makes a coherent string straightforward:

• Socket eye fitting, 70 to 300 kN (table above)
• Ball eyes – 70 to 420 kN, coupling sizes 16, 20, 24, 28 mm
• U shackles – 70 to 170 kN
• Yoke plates – 100 to 600 kN

Specify the string’s design rating once and everything comes back in the same class.

3. Eye form and the hardware below it: Check the eye’s opening (φ) against the pin, hook, or eye bolt it will meet. An eye rated correctly but dimensioned for a smaller pin is a fitting that goes back in the box.

Why Buyers Choose DAPENG Socket Eye Fittings

• Forged in one piece: Hot-forged carbon steel with no welds in the load path, on a fitting where the entire string’s load passes through a socket wall and an eye, the strength has to be in the grain of the steel.

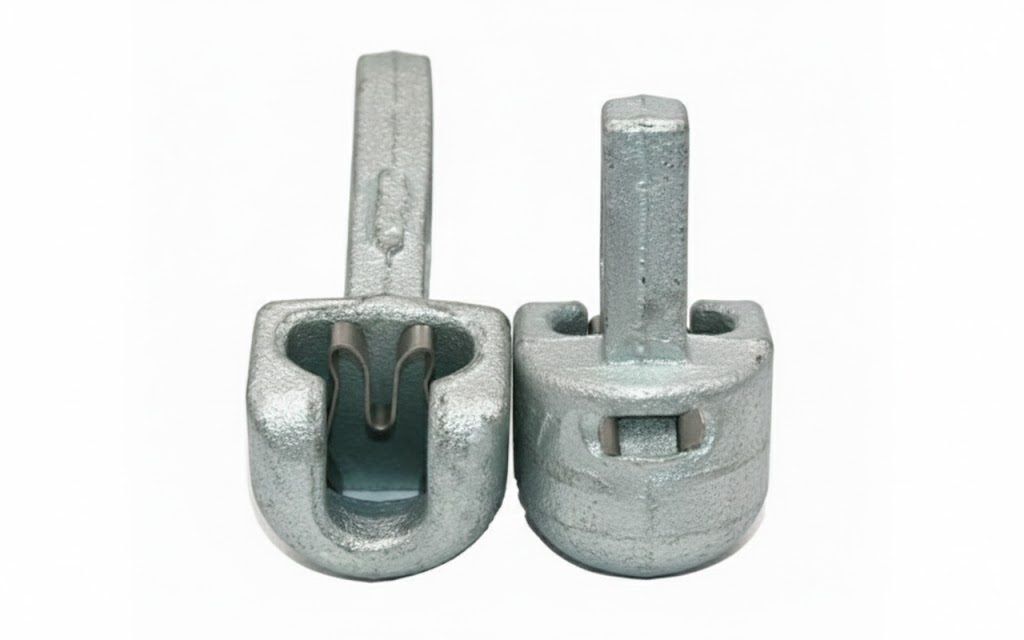

• Socket geometry made to the coupling standard, not to “close enough:” The ball seats fully, articulates freely, and the clip channel accepts a properly seated retaining clip. A socket machined loosely wears; one machined tight fights the crew installing it.
• Retaining clips supplied and specified: Clips ship with the fittings, in the type your standard requires, so nobody improvises a clip at height.
• Galvanizing you can measure: Hot-dip galvanized to ISO 1461 / ASTM A153 class coatings, verifiable with a gauge at goods-in, including inside the socket, where thin coating fails first.
• Batch load-tested, with paper: Test reports accompany every shipment, so your safety factors rest on tested figures and your client’s inspector has documents to review.
• The complete string from one factory: Socket eyes ship with the ball eyes, ball clevises, socket clevises, U shackles, yoke plates, insulators and terminal clamps of the same assembly, matched, kitted per structure, documented together.

Use-Case Deep Dive

Where does a socket eye sit in a suspension string?

Typically at the lower end. A standard suspension assembly runs: structure attachment → U shackle → ball eye → insulator string → socket eye or socket clevis → suspension clamp → conductor. The socket receives the ball of the last insulator; the eye (or clevis) connects to the clamp or the fitting above it.

On tension assemblies the terminal fitting changes to a strain clamp, bolt type tension clamp, or preformed tension clamp; on bundled or twin-string arrangements a yoke plate sits in the chain and becomes the component to match.

How is the retaining clip fitted correctly, and why does it matter so much?

The ball is pushed fully home into the socket, then the clip is inserted through the socket’s channel and spread or seated so it cannot back out. Three field rules worth putting in your crew briefing:

• Fully home first: A ball not seated to depth leaves the clip channel misaligned; forcing a clip into a partially seated coupling produces an assembly that looks finished and isn’t.
• Every clip, every string, checked visually: This is the most common assembly omission in string work, and the consequence, a coupling that can separate under load, is the most serious.
• Never substitute wire or a nail: A field-improvised clip is not a rated component. Order spare clips with the fittings; they cost almost nothing and their absence stops a crew.

We supply clips with the fittings for exactly this reason: the fitting and its retention should arrive as one item, not as two purchase decisions.

Can I match socket eyes into a string built by another supplier?

Yes, with two checks in writing. Send the coupling designation and rated load class of the fittings the socket eye will sit between (or samples, or clear photographs with a rule in frame), and we confirm mating and load class before production. Mixed-supplier strings are entirely normal on networks built across decades; the risk is not the mixing, it’s assuming that everything in the chain shares a rating when nobody has checked.

Specifications and What They Mean for You

Straight Answers to Common Buyer Concerns

“How do we verify a forged coupling is rated as marked?” Test it before it ships and check it when it lands: batch load-test reports accompany every order, galvanizing thickness is measurable at goods-in, and third-party pre-shipment inspection (SGS/BV or your nominated agency) is welcome at the factory. On string hardware, we would rather your inspector confirmed the rating at our gate than your outage report questioned it later.

“Our utility standard specifies a coupling size we don’t see listed.” Then we forge to it. National utilities specify coupling geometry, eye dimensions, marking, and sometimes proof-load documentation, manufacturing to a customer’s drawing is the majority of our export work. Send the specification page or a sample; confirmation drawings are issued before production begins.

“Can we order small quantities for a maintenance stock?” Coupling fittings usually ship as part of complete string assemblies where quantities take care of themselves, but maintenance and spares orders are welcome. Tell us the quantity and we quote honestly, including the freight arithmetic, so you can compare landed cost rather than guess at it.
