Protecting the Conductor Where It’s Most Likely to Fatigue
A conductor’s most vulnerable point is where it hangs from the suspension clamp. The wind sets the conductor vibrating with small, constant, aeolian oscillations, and that vibration concentrates its bending stress right at the rigid clamp, where the moving conductor meets the fixed support. Over years, that concentrated flexing fatigues the conductor strands exactly there, and the line can fail at the clamp.

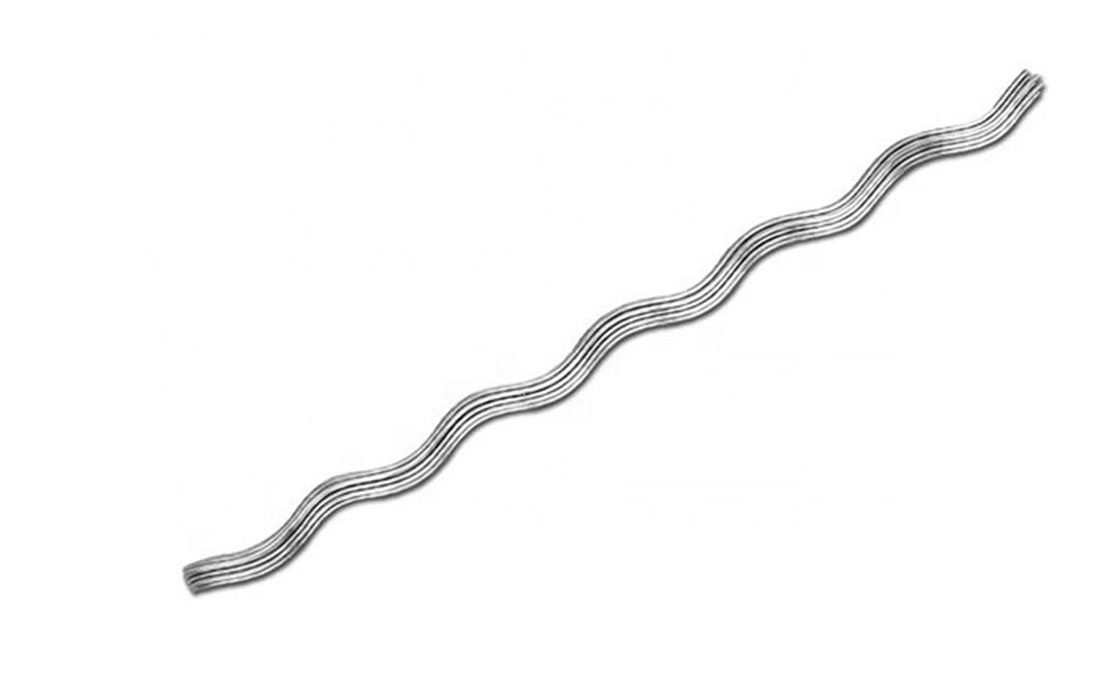

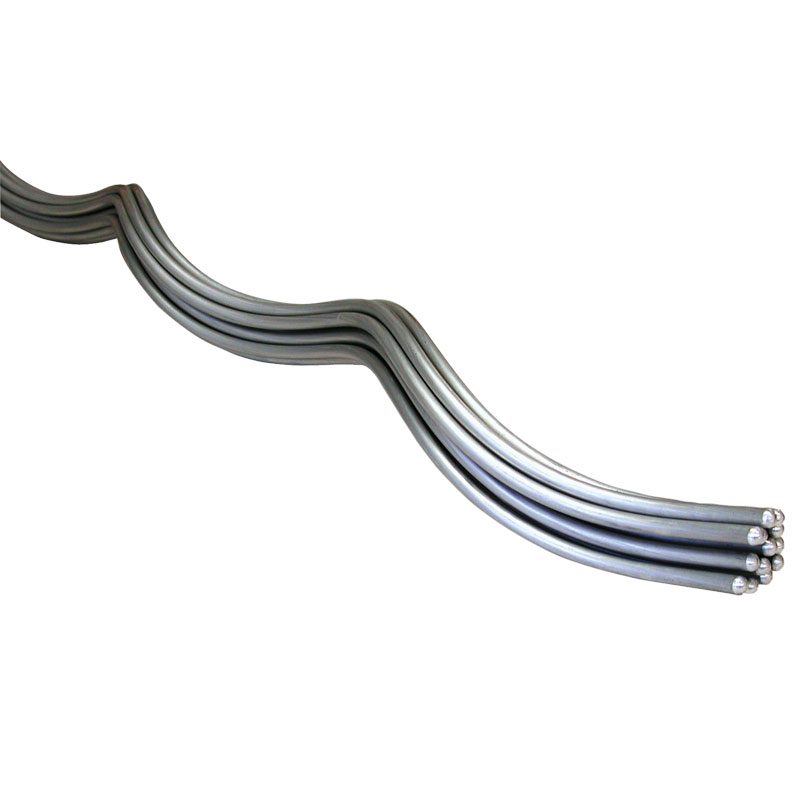

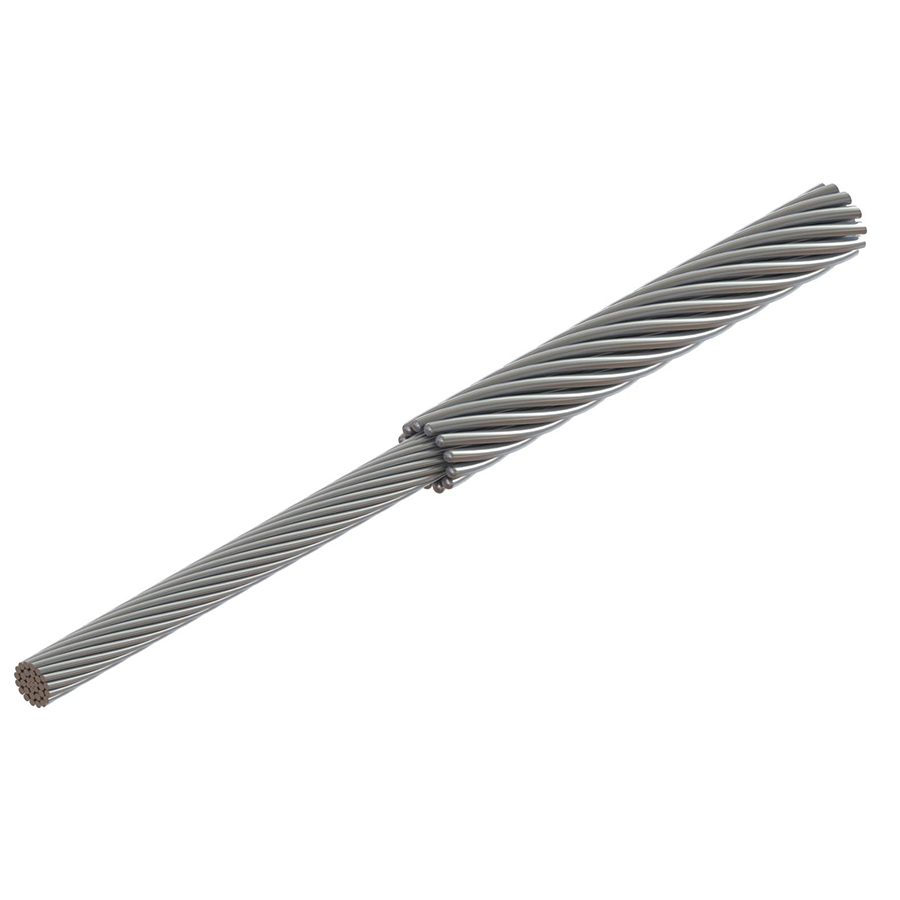

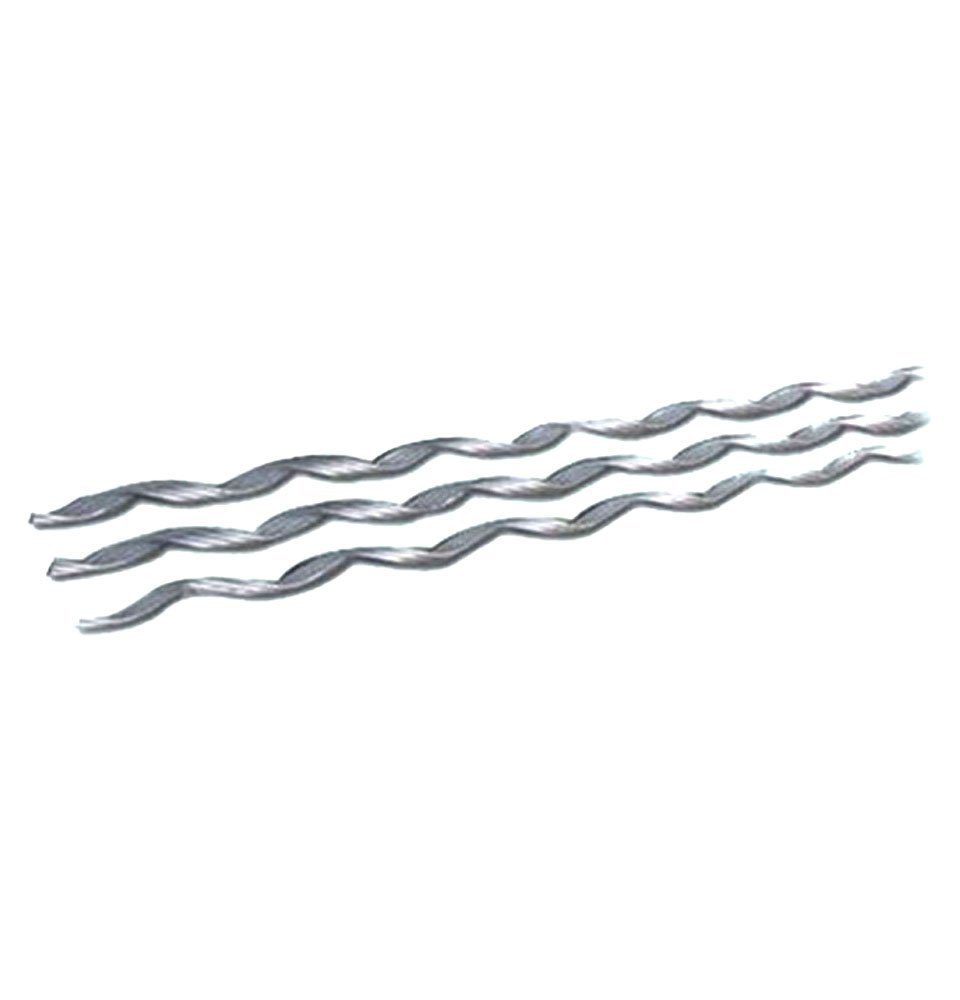

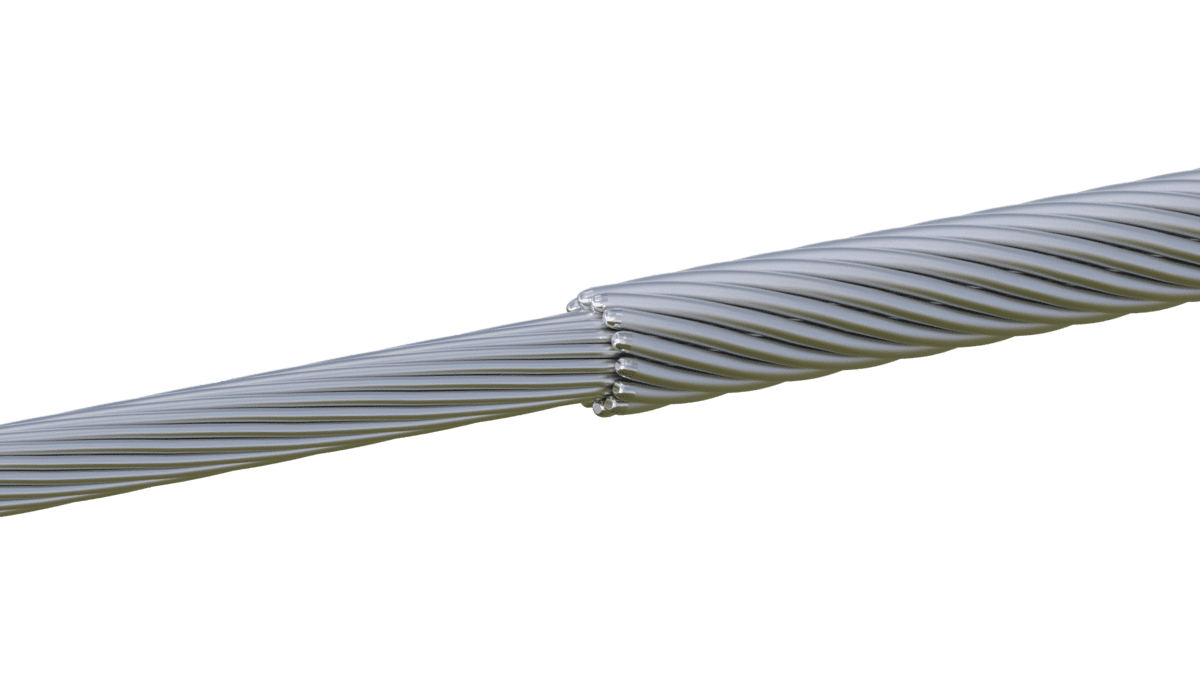

Armor rods protect that point. A set of helical rods, pre-formed to your conductor’s size, wraps around the conductor through the suspension clamp, reinforcing the conductor over that length, distributing the bending stress instead of letting it concentrate, and taking the clamp’s abrasion on the rods instead of the conductor. The conductor’s most fatigue-prone point becomes its reinforced one. This page covers armor rods: the problem they solve, where they sit in the vibration-protection family, and why the conductor match is everything.
The Problem: Vibration Fatigue at the Support
Understanding why armor rods exist is understanding where a conductor fails:
- Wind causes aeolian vibration low-amplitude, high-frequency oscillation of the conductor along the span.
- That vibration has to go somewhere at the support, and its bending stress concentrates at the suspension clamp, where the vibrating conductor meets the rigid clamp mouth.
- Cycle after cycle, year after year, that concentrated flexing fatigues the conductor strands at the clamp the classic fatigue-failure point on an overhead line.
Armor rods interrupt that failure mode. By wrapping the conductor through the clamp, they increase the conductor’s effective stiffness and diameter over that length, moving and spreading the bending so no single point takes the concentrated stress and they physically shield the conductor from the clamp’s grip and abrasion. The result is a conductor that resists fatigue where it used to be most exposed.
Armor Rods in the Vibration-Protection Family
Armor rods are one part of how a line is protected from vibration worth placing them among the others so buyers pick the right combination:
- Armor rods (this page) reinforce and protect the conductor at the suspension clamp (the support point).
- Spiral vibration dampers / Stockbridge dampers absorb the vibration energy on the span, reducing the amplitude that reaches the support.
- Armor grip suspension a cushioned suspension that combines rod-type reinforcement with an elastomer-lined clamp for severe-duty support.
- Line guards general helical protection at other contact/abrasion points.
On a vibration-prone line, dampers on the span and armor rods at the support work together the dampers cut the vibration energy, the rods protect the conductor at the point it concentrates. For severe support duty, armor grip suspension integrates the protection into the clamp. Tell us the line and we’ll advise the combination.
The Critical Spec: The Conductor Match
Armor rods are formed to one conductor size the rods are pre-shaped to a specific conductor diameter and lay, so they nest around it correctly. The conductor match is the spec that can’t be approximated:
- Rods made for your exact conductor wrap on cleanly and reinforce properly.
- Rods for a neighboring size won’t nest right they’re the wrong part.
Specifying armor rods starts with the conductor: type (ACSR, AAC, AAAC, etc.), diameter, and stranding. Send the conductor and the rods are matched to it before production the spec we confirm in writing.
Why Buyers Choose DAPENG Armor Rods
- Matched to your exact conductor: Formed to your conductor’s diameter, type, and lay confirmed at RFQ.
- Fatigue protection where it’s needed: Reinforce and distribute stress at the suspension clamp, protecting the conductor’s most fatigue-prone point.
- Corrosion-matched: Formed wire to the conductor’s metallurgy (aluminum-based for aluminum conductors), so rods and conductor age together without a galvanic couple.
- Tool-free, error-resistant: Wrapped on by hand through the clamp; correctness is in the manufactured form.
- Part of the protection set: Armor rods with the suspension clamps, dampers, and AGS that protect a conductor from one source.
Use-Case Deep Dive
Do I need armor rods, dampers, or both?
Often both, because they do different jobs. Dampers absorb vibration energy on the span, reducing how much reaches the support; armor rods protect the conductor at the support where the remaining vibration concentrates. On a vibration-prone line long spans, exposed terrain, steady winds the standard practice is dampers on the span and armor rods (or AGS) at the support, working together. On a benign line, armor rods at the support may suffice. Send the span, terrain, and conductor and we’ll advise the combination.
Armor rods or armor grip suspension?
Armor rods wrap the conductor and go inside a standard suspension clamp reinforcement plus a normal clamp. Armor grip suspension integrates the reinforcement with an elastomer-lined clamp body into one cushioned suspension assembly, for more severe vibration duty. For standard support protection, armor rods in a suspension clamp; for severe duty or where a cushioned support is specified, AGS. Tell us the duty and we’ll match it.
Can armor rods be reused?
Generally no like all preformed fittings, they’re formed to grip once; removing them distorts the rods. Order the right quantity plus an allowance. The single-use nature is the trade-off for the matched, full-length, point-load-free reinforcement.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Type | Preformed helical armor rods | Reinforce + protect at the support |
| Conductor match | Formed to your exact conductor | Nests correctly; a size off is wrong |
| Role | Vibration-fatigue/abrasion protection at the clamp | Protects the conductor’s weak point |
| Material | Formed wire to conductor metallurgy | Ages with the conductor; no galvanic couple |
| Install | Tool-free, wrapped on through the clamp | Fast, error-resistant |
| Reuse | Single-use | Order to quantity plus allowance |
Straight Answers to Common Buyer Concerns
“What do armor rods actually do?” They protect the conductor where it hangs from the suspension clamp the point where wind vibration concentrates its bending stress and fatigues the conductor over time. Wrapping the conductor through the clamp, the rods reinforce it, spread the bending stress, and take the clamp’s abrasion, so the conductor’s most fatigue-prone point becomes its reinforced one. On a line with any vibration exposure, they meaningfully extend conductor life at the support.
“How do I make sure they match my conductor?” Send the conductor’s type, diameter, and stranding armor rods are formed to one conductor size, so we match them exactly and confirm in writing. Rods for a neighboring conductor won’t nest right; the conductor match is the one spec that can’t be approximated.
“How is this different from line guards?” Armor rods are the support-specific reinforcement at the suspension clamp against vibration fatigue; line guards are the more general helical protection at other contact points. Same helical family, different job if your need is the suspension support, it’s armor rods. Tell us the point you’re protecting and we’ll supply the right one.
