Description
The Spindle That Carries the Insulator Out Along the Crossarm

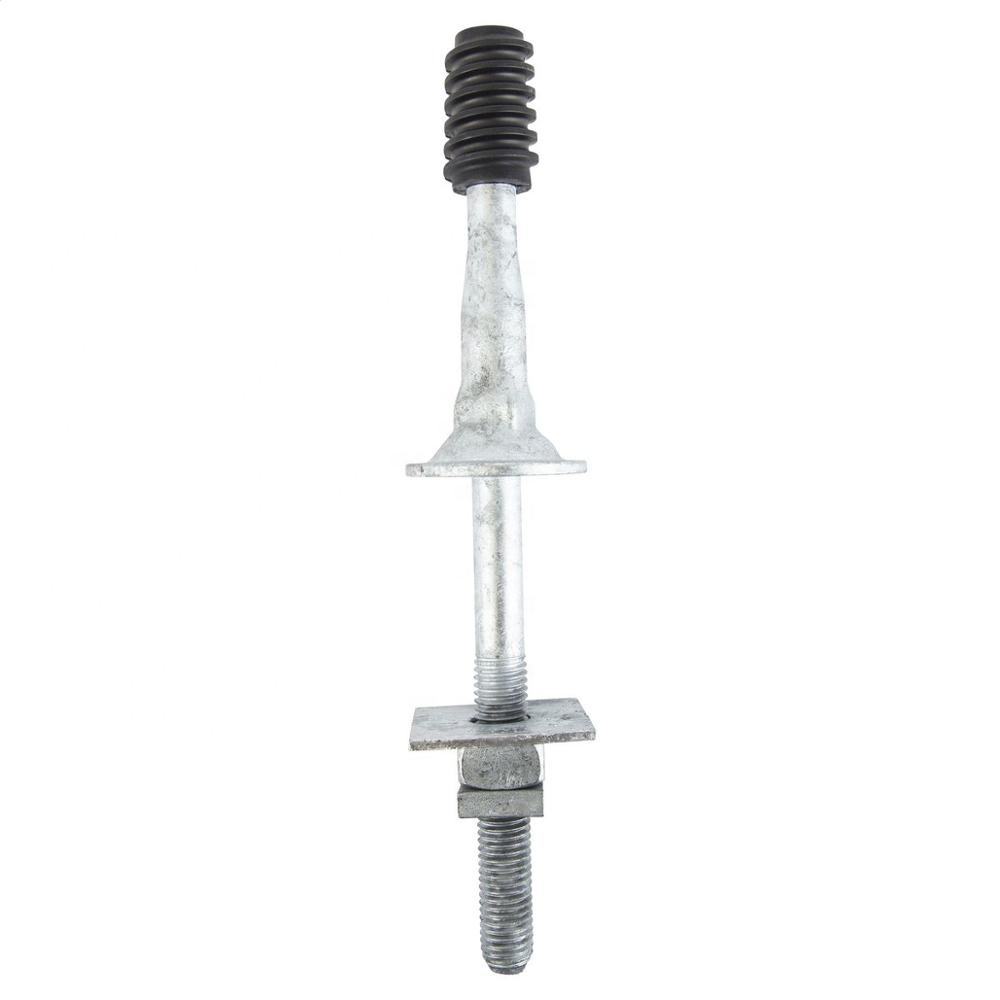

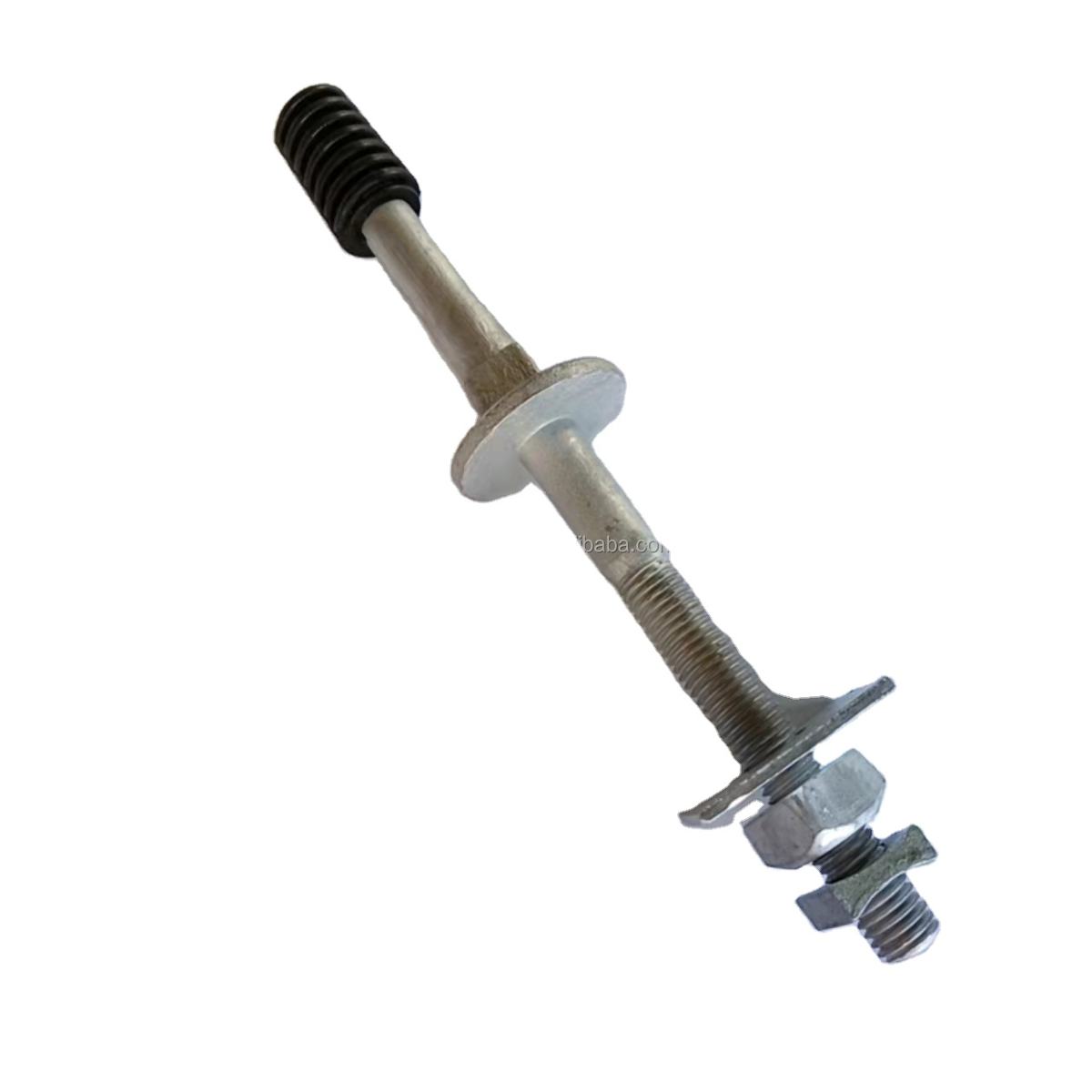

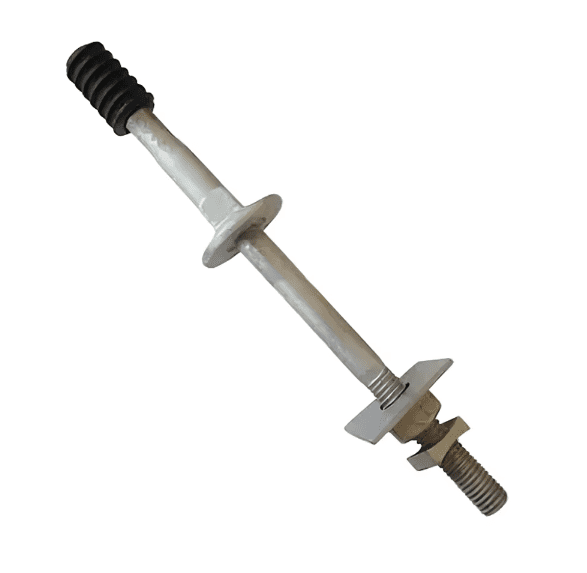

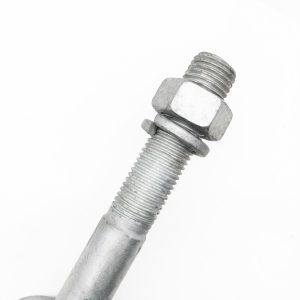

On a distribution crossarm, each conductor sits on a pin insulator, and each pin insulator needs a spindle to screw onto. The insulator pin is that spindle: mounted through the crossarm, it presents a threaded lead out along the arm for the insulator, which carries the conductor at its designed spacing.
It’s the component that puts each conductor in its place across the arm, and it lives there for decades, holding the insulator firm through wind and load. This page covers insulator pins: how they mount to the crossarm, how the thread matches the insulator, and the sizes we make.
Insulator Pin or Pole Top Pin? Mounting Location Decides
The distinction to settle first, because the two are easy to confuse:
- Insulator pin (this page) mounts through a hole in the crossarm, secured with a nut, presenting the spindle out along the arm for the conductors on the crossarm.
- Pole top pin mounts at the top of the pole, for the top conductor above the arm.
Both present the same threaded spindle for a pin insulator; they differ in where they mount. A structure often uses both pole top pin for the top conductor, insulator pins along the arm. Order by position, and we supply each for its place.
Two Matches: The Thread to the Insulator, the Shank to the Crossarm
An insulator pin has to fit two things:
- The lead thread must match the threaded socket in the base of your pin insulator, so the insulator screws on and seats firm. Lead threads come in standard sizes (our range includes the common 1″ and 1-3/8″, among others).

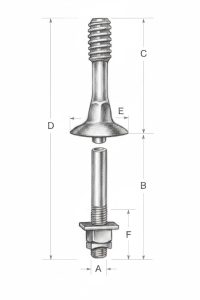

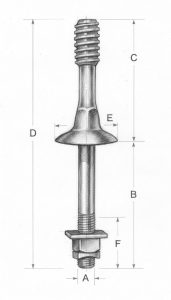

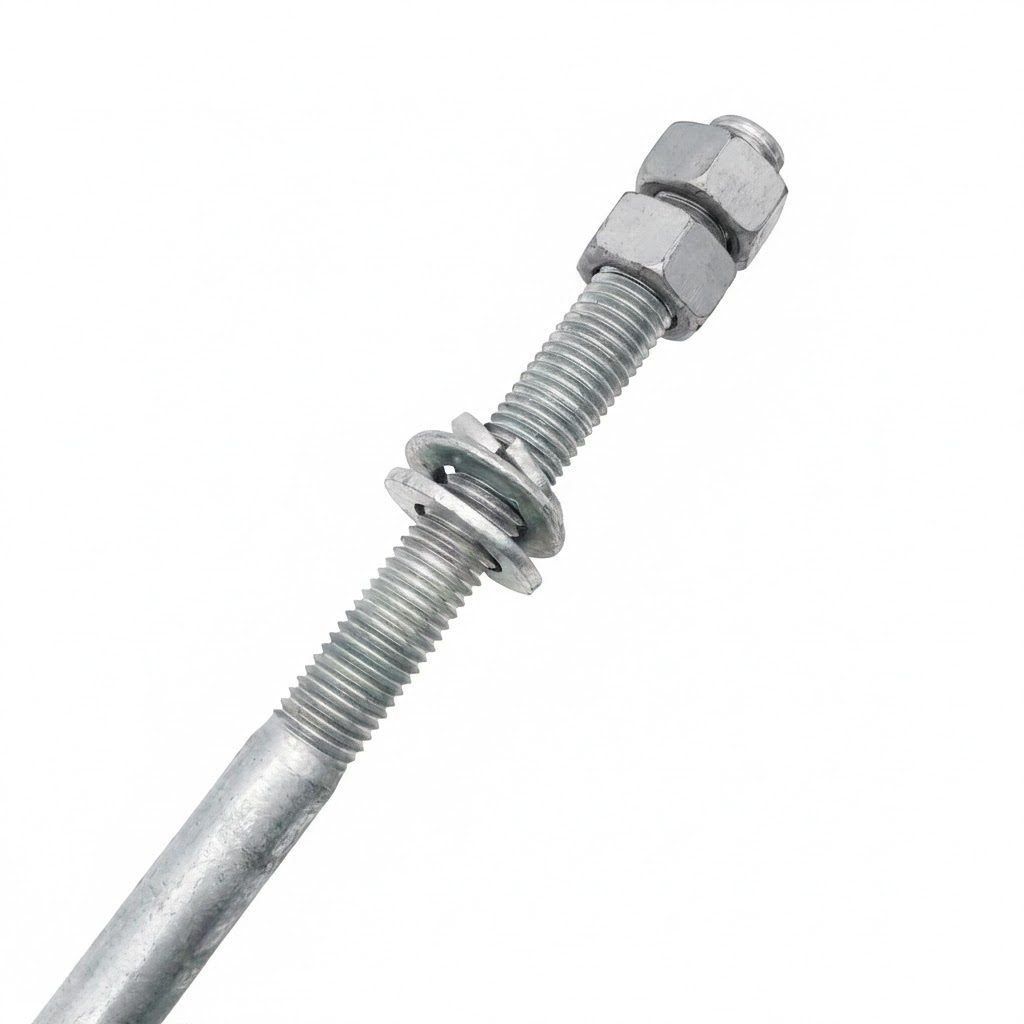

- The shank must fit the crossarm the shank diameter matched to the hole, and the length matched to the arm thickness plus the nut, so the pin secures tight through the crossarm.
Get both right thread to insulator, shank to arm and the pin mounts firm and the insulator seats true. Send the insulator (or its socket thread) and the crossarm detail (hole size, thickness), and we supply the pin to fit both.
Why Buyers Choose DAPENG Insulator Pins
- Lead-thread matched to your insulator: The spindle thread to your pin insulator’s socket, confirmed at RFQ.
- Shank matched to your crossarm: Diameter and length to the arm’s hole and thickness, so the pin secures tight.
- Hot-dip galvanized for outdoor service: Galvanized to ISO 1461 / ASTM A153 class coatings, matched to the crossarm and hardware.
- Standard sizes or to drawing: The catalog range, or made to your specification.
- Supplied with the insulator and crossarm hardware: Pins with the pin insulators, insulator ties, crossarms, and mounting bolts they work with matched and kitted.
Use-Case Deep Dive
Where is an insulator pin used?
Through a distribution crossarm, carrying each conductor’s pin insulator out along the arm at the designed spacing. On a typical structure, the conductors on the arm sit on pin insulators on insulator pins, while the top conductor (if any) sits on a pole top pin at the pole tip. Together they set the conductor geometry across the structure. Tell us the crossarm and the conductors and we supply the pins for each position.
How do I match the pin to my insulator and crossarm?
Two matches. Insulator: the lead thread to the insulator’s socket send the insulator or its socket thread. Crossarm: the shank diameter to the arm’s hole and the length to the arm thickness (plus nut projection) send the crossarm detail. We supply the pin cut to fit both, so the insulator seats and the pin secures. Buying the pins, insulators, and crossarms together guarantees all three match.
Straight or angled insulator pin do you make both?
Insulator pins come in straight and, for some positions, offset/angled forms depending on how the insulator must sit relative to the arm. Tell us the position and the insulator and we supply the form that puts the conductor where the design needs it.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Lead thread | Standard sizes (1″, 1-3/8″, others) | Matches your insulator’s socket; seats firm |
| Shank | Diameter and length to your crossarm | Secures tight through the arm |
| Material & coating | HDG to ISO 1461 / ASTM A153 class | Outdoor service life, matched to the hardware |

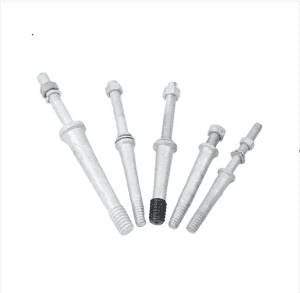

| Sizes | Catalog range or to drawing | Dimensioned to your design |
| Pairing | With pin insulators, ties, crossarms | The arm assembles complete |
Straight Answers to Common Buyer Concerns
“Do I need an insulator pin or a pole top pin?” If the insulator mounts on the crossarm, it’s an insulator pin (this page); if it mounts at the top of the pole, it’s a pole top pin. Most structures use both. Tell us the position and we supply the right pin so nothing arrives for the wrong location.
“How do I know the insulator will fit the pin?” Match the lead thread to the insulator’s socket send us the insulator (or its socket thread) and we cut the pin to fit. This is the match that stops an installation if wrong, confirmed at RFQ. Buying insulators and pins together guarantees the fit.
“Can you match a legacy pin or a utility standard?” Send the standard, the dimensions, or a sample. Manufacturing insulator pins to a utility’s specification (lead thread, shank, dimensions, grade) is routine export work, with confirmation before production.
Complete the Crossarm
- Pin insulators what the pin carries
- Pole top pins the pole-tip counterpart
- Insulator ties securing the conductor to the insulator
- Post insulators and post insulator brackets the post-mounted alternative
- Steel cross arms, square head machine bolts the arm and mounting hardware
- Insulators the full insulator range
- Browse all pole line hardware and overhead line fittings
Get an Insulator-Matched Quote Within 24 Hours
Send the insulator you’re using (or its socket thread), the crossarm detail (hole size, thickness), and your quantities or the structure standard. Our team confirms the lead thread and shank, and returns a factory-direct quotation with the insulators, ties, and crossarms alongside, typically within one working day.
After You Order
Thread and shank confirmation before production, galvanizing certificates with shipment, pins kitted with their insulators and ties, and an engineering contact who answers quickly because the insulator pin sets each conductor’s position on the arm, and getting the thread and shank matched means the insulators seat first time.
