Description
Preformed Protection Where the Conductor Takes Wear
Wherever a conductor is gripped, tied, tapped, or rubbed, the metal takes wear at that point: abrasion from a clamp or tie, fretting from small movements, chafing at a contact. Left unprotected, that wear accumulates exactly where the conductor is already stressed, and the conductor fails there first.

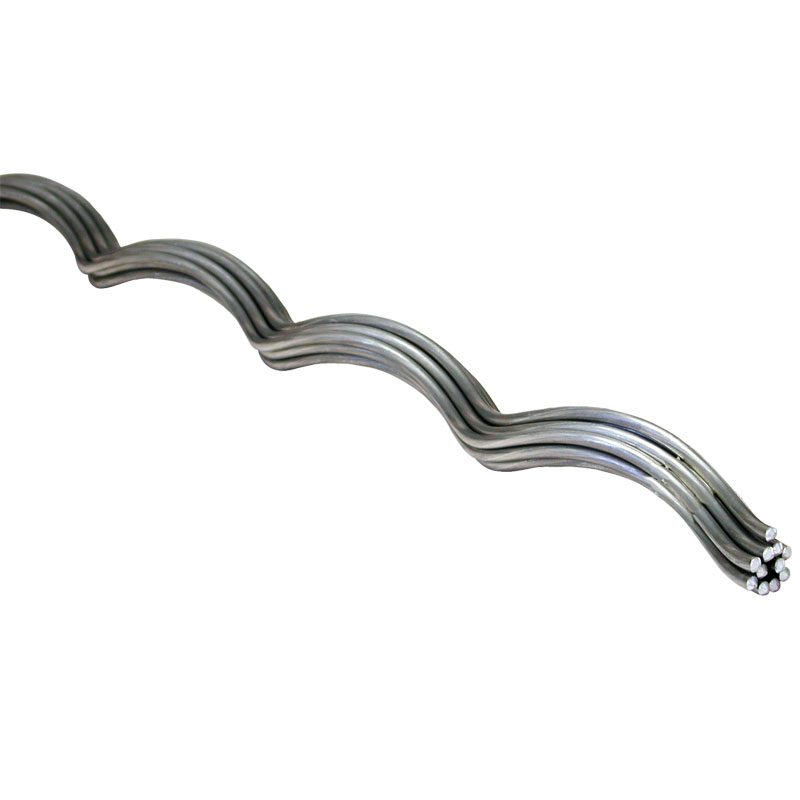

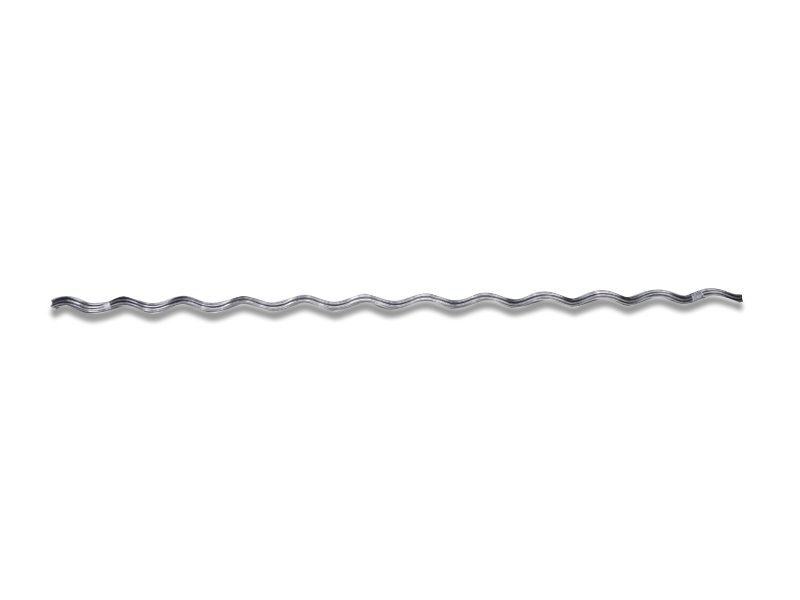

A line guards protects it. A set of helical rods, pre-formed to your conductor’s exact size, wraps around the conductor at the point that needs protection, adding a sacrificial, wear-taking layer that grips over a length and shields the conductor beneath. The guard takes the abrasion and the fretting so the conductor doesn’t. It’s the preformed way to protect a conductor at a wear point: full-length grip, no point load, and tool-free to install.
This page covers preformed line guards, how the helical wrap protects, where it’s used, and why the conductor match is everything.
The Preformed Principle, Applied to Protection
A line guard protects the way every preformed fitting works, and it’s why the helical wrap beats a plain sleeve or tape:
- Grip and protect over a length: The rods wrap along the conductor, distributing their grip and taking wear over a length rather than at a point no concentrated stress, and full coverage of the wear zone.
- A sacrificial layer: The guard rods take the abrasion and fretting the conductor would otherwise take cheaper to replace a guard than a conductor, and the conductor stays sound underneath.
- Tool-free, conductor-matched: Pre-formed to the conductor’s lay and diameter, the rods wrap on by hand no tools and grip cleanly because they’re made for that exact conductor.
Like all preformed fittings, a line guard is made for one conductor size and generally isn’t reusable which is why the conductor match (below) is the critical spec.
Line Guard or Armor Rod?
Both are helical formed-rod conductor protection, so it’s worth being clear on the roles (and confirming the factory treats them as distinct see the note above):
- Line guard (this page) the general helical protective wrap, applied at a contact, tapping, tie, or abrasion point to protect the conductor where it takes wear.

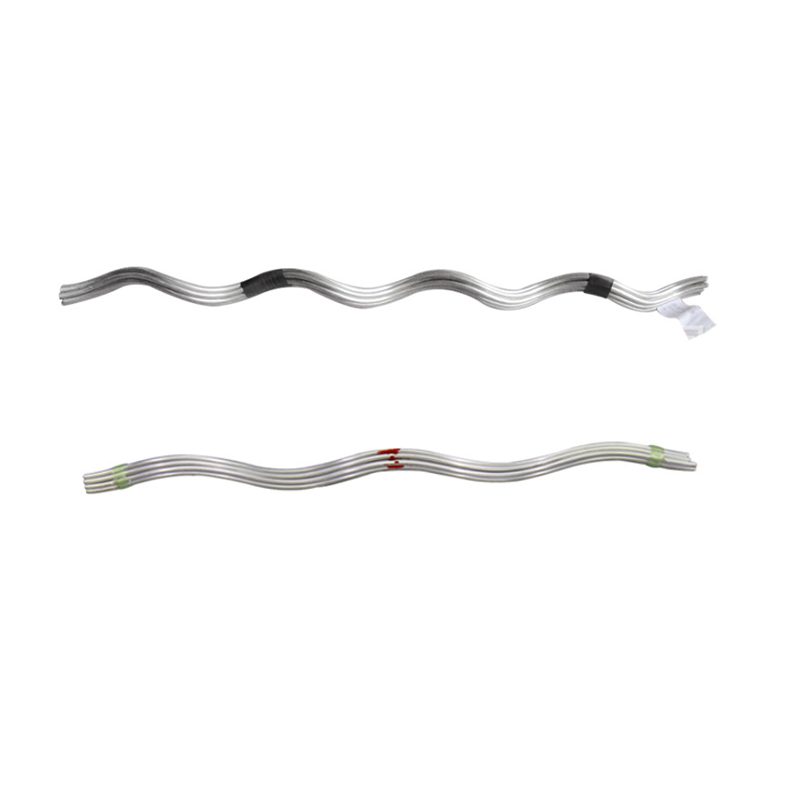

- Armor rods helical rods applied specifically at the suspension clamp support, reinforcing the conductor against vibration fatigue and clamp abrasion at the support point.
If the factory confirms these are genuinely different products (rod design, length, purpose), the split is: armor rods for the suspension support, line guards for other protection points. If they’re the same product, we should route one to the other rather than run both. Tell us the wear point you’re protecting and we’ll supply the right one.
The Critical Spec: The Conductor Match
A line guard is formed to one conductor size its rods are pre-shaped to a specific conductor diameter and lay. So the conductor match is the spec that can’t be approximated:
- A guard made for your exact conductor wraps on cleanly and protects properly.
- A guard for a neighboring size won’t grip or seat right it’s the wrong part.
Specifying a line guard therefore starts with the conductor: its type (ACSR, AAC, AAAC, etc.), diameter, and stranding. Send the conductor and each guard is matched to it before production the spec we confirm in writing.
Why Buyers Choose DAPENG Line Guards
- Matched to your exact conductor: Formed to your conductor’s diameter, type, and lay confirmed at RFQ.
- Corrosion-matched: Formed wire to the conductor’s metallurgy (aluminum-based for aluminum conductors), so the guard and conductor age together without a galvanic couple.
- Sacrificial protection over length: Takes the abrasion and fretting over a length, protecting the conductor at the wear point.
- Tool-free, error-resistant: Wrapped on by hand; correctness lives in the manufactured form.
- Part of the conductor-protection set: Line guards with the armor rods, armor grip suspension, and dampers that protect a conductor from one source.
Use-Case Deep Dive
Where do line guards go?
At the conductor wear points where a clamp, tie, tap, or contact abrades the conductor, or where small movements cause fretting. The guard wraps the conductor there, taking the wear. This is distinct from the suspension clamp support, where armor rods reinforce against vibration fatigue. Tell us the wear point and conductor and we’ll supply the guard to protect it.
Why a preformed guard instead of tape or a sleeve?
Because a preformed helical guard grips and protects over a length without a point load, matches the conductor exactly, and stays put where tape degrades and a loose sleeve moves and chafes. The helical rods become a wear-taking layer bonded to the conductor’s own geometry, protecting it consistently for the long term. It’s the difference between a proper conductor-protection fitting and a temporary wrap.
Can a line guard be reused?
Generally no like all preformed fittings, it’s formed to grip once; removing it distorts the rods. Order the right quantity plus an allowance rather than planning to reuse. The single-use nature is the trade-off for the full-length, matched, point-load-free protection.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Type | Preformed helical protective wrap | Full-length, point-load-free protection |
| Conductor match | Formed to your exact conductor | Wraps and protects correctly; a size off is wrong |
| Role | Contact/abrasion/wear points | Protects where the conductor takes wear |
| Material | Formed wire to conductor metallurgy | Ages with the conductor; no galvanic couple |
| Install | Tool-free, wrapped on | Fast, error-resistant |
| Reuse | Single-use | Order to quantity plus allowance |
Straight Answers to Common Buyer Concerns
“How is a line guard different from armor rods?” Both are helical formed-rod conductor protection; the difference is where they’re used. Armor rods reinforce the conductor at the suspension-clamp support against vibration fatigue; line guards protect the conductor at other contact and abrasion points. (We’re confirming the two are distinct in our range if your need is the suspension support, you may want armor rods; tell us the wear point and we’ll supply the right one.)
“How do I make sure it matches my conductor?” Send the conductor’s type, diameter, and stranding a line guard is formed to one conductor size, so we match it exactly and confirm in writing. A guard for a neighboring conductor won’t seat right; the conductor match is the one spec that can’t be approximated.
“Can you supply the conductor-protection set?” Yes line guards with armor rods, armor grip suspension, and dampers, matched to your conductor and kitted, so the conductor is protected at every point that needs it.
Complete the Conductor Protection
- Armor rods reinforcement at the suspension-clamp support
- Armor grip suspension cushioned support at severe-duty points
- Spiral vibration dampers and Stockbridge dampers span vibration control
- Suspension clamps the support the conductor hangs from
- Preformed line fittings the full preformed family
- Browse all overhead line fittings and pole line hardware
Get a Conductor-Matched Quote Within 24 Hours
Send your conductor (type, diameter, stranding), the wear point you’re protecting, and quantities. Our engineers confirm the line guard to your conductor and return a factory-direct quotation with the related conductor-protection products alongside, typically within one working day.
After You Order
Conductor-match confirmation before production, batch documentation with shipment, guards kitted with the related conductor-protection hardware, and an engineering contact who answers precisely because a line guard is matched to one conductor and protects it where it takes wear, and getting the match right is the whole specification.
