When the Anchor Is Deep, How Does the Guy Reach It?
A guy anchor holds best when it’s set deep a manta ray, screw, rock, or disk anchor driven well below grade develops its full holding capacity from undisturbed ground. But the guy wire attaches at the surface. Between the deep anchor and the guy hardware, there’s a gap, and something has to bridge it at full load without weakening the anchor.

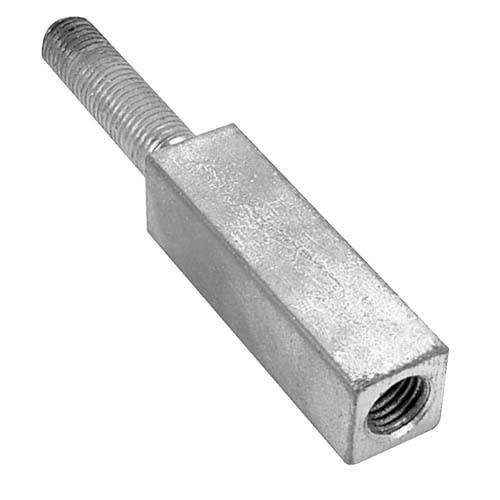

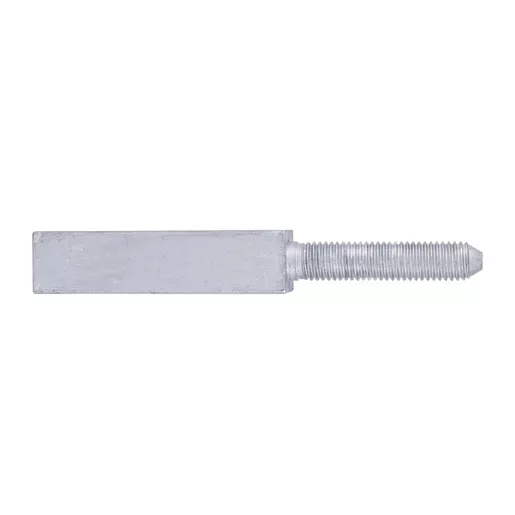

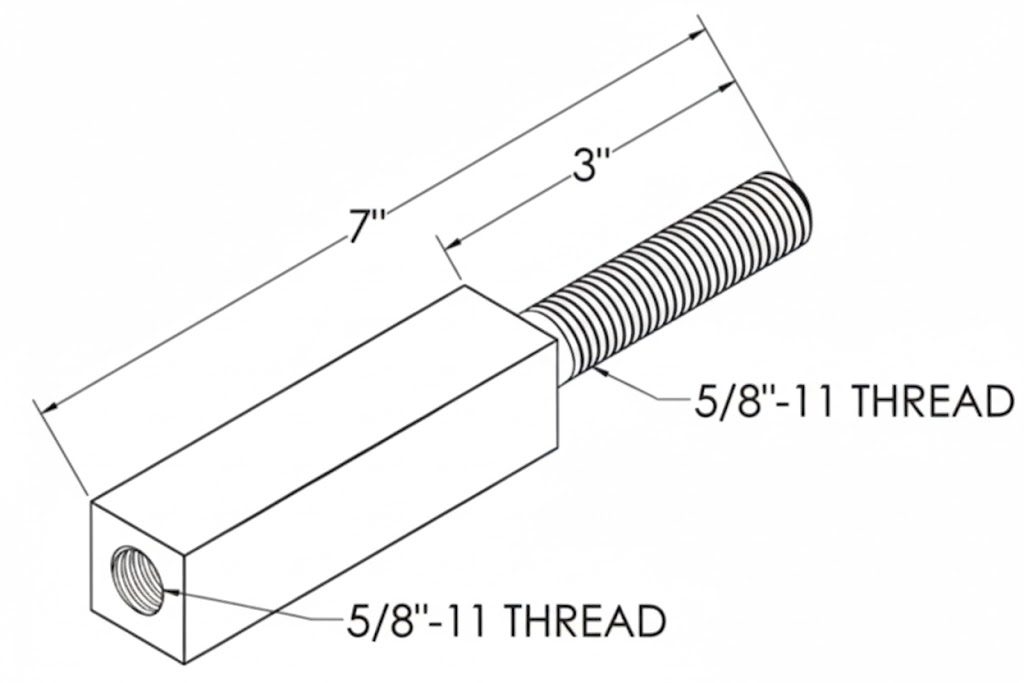

The cable extension bolt bridges it: a threaded rod or bolt that couples to the anchor rod below and extends the connection up to grade, presenting the point where the eye nut and guy hardware attach. Set the anchor as deep as the ground wants; the extension brings the connection to where the crew and the stay can reach it.
This page covers cable extension bolts for guy anchoring: what they do, how they match the anchor, and how they complete the assembly.
Why Buyers Choose DAPENG Cable Extension Bolts
- Couples to your anchor, extends to grade: Threaded to match the anchor rod below and present a connection at working level above the bridge between a deep anchor and the guy hardware.
- Rated for the full anchor load: The extension carries the same load the anchor and guy do; its rating meets or exceeds the assembly’s, so it’s never the weak link between a deep anchor and a strong stay.
- Hot-dip galvanized for buried and at-grade service: Galvanized to ISO 1461 / ASTM A153 class coatings, at a component that lives at and below grade where corrosion is harshest.
- Thread matched both ends: To the anchor rod below and the eye nut or guy hardware above, so the assembly couples cleanly with no adapters.
- Supplied with the anchor assembly: Extension bolts ship with the anchor rods, eye nuts, guy grips and guy clamps of the same anchor matched and kitted.
Use-Case Deep Dive
What is a cable extension bolt used for?
Extending a guy anchor up to working level. When an anchor is set deep as manta ray, rock, screw, and disk anchors often are, to reach solid holding ground the extension bolt couples to the anchor rod and brings the load-bearing connection up to grade, where the eye nut and guy assembly attach. It’s the length adjustment that lets the anchor go as deep as the ground requires while the guy still connects at the surface. Multiple extensions can bring a very deep anchor up in stages, within your standard’s guidance.
How does the extension bolt match the anchor?
Two checks, both essential. Thread the extension must couple to the anchor rod’s thread below and accept the eye nut or guy hardware above; the threads must match exactly, or the assembly can’t be made. Rating the extension carries the full guy load, so its rating must meet or exceed the anchor’s and the guy’s, with your standard’s factor. Send the anchor type and rod thread, the depth to grade, and the guy load, and we confirm the extension’s length, thread, and rating to suit. The extension must never be the weak point between a deep, strong anchor and a strong stay matching thread and rating is what ensures it isn’t.
How deep an anchor can an extension bring up?
As deep as the ground and the design require the extension length is chosen to close the gap between the anchor’s set depth and grade, and multiple extensions can be coupled in series for very deep anchors, within the manufacturer’s and your utility’s guidance. The point of setting an anchor deep is holding capacity in undisturbed ground; the extension is what makes that depth practical by keeping the guy connection at the surface. Give us the set depth and the anchor, and the extension arrangement comes back with the quotation.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Function | Extends the anchor rod up to grade | Deep anchor, surface connection |
| Coupling | Thread-matched to anchor rod + guy hardware | Assembles cleanly, no adapters |
| Rating | Meets/exceeds the anchor and guy load | Never the weak link in the stay |
| Material & coating | HDG to ISO 1461 / ASTM A153 class | Survives buried and at-grade corrosion |
| Length | To your anchor’s set depth | Brings the connection to working level |
| Verification | Batch testing, reports supplied | Anchor safety factor on tested figures |
Straight Answers to Common Buyer Concerns
“How do I make sure the extension matches my anchor and guy?” Send three things: the anchor type and its rod thread, the set depth (how far below grade the connection sits), and the guy load. We confirm the extension’s thread (to couple below and above), its length (to reach grade), and its rating (to carry the full load). A thread mismatch is the one failure that stops an anchor assembly cold, and it’s confirmed at RFQ, not discovered in the field.
“Is the extension a weak point in the anchor?” Only if it’s under-rated which is exactly what we design out. The extension carries the same load as the anchor and the guy, so it’s rated to meet or exceed them, batch-tested, with reports supplied. A properly rated extension is transparent to the load path; the anchor holds as if the connection were at its own depth.
“Can you supply the complete deep-anchor assembly?” Yes the extension is one link in it. Send the anchor type, set depth, and guy load, and we quote the anchor (or manta ray / screw / rock / disk anchor), the extension bolt, the eye nut, and the guy hardware as a matched set, kitted per anchor.
Complete the Anchor
- Anchor rods the anchor rod the extension couples to
- Manta ray anchors, screw anchors, expanding rock anchors, disk anchors the deep anchors an extension reaches
- Eye nuts the eye the extension presents at grade
- Guy grips, guy clamps, guy wire the guy hardware above
- Stay rods and pole line hardware the wider stay and structure hardware
- Browse all overhead line fittings
Get an Anchor-Matched Quote Within 24 Hours
Send your anchor type and rod thread, the set depth, the guy load, and your quantities or the anchor assembly detail. Our engineers confirm the extension’s thread, length, and rating, and return a factory-direct quotation with the anchor, eye nut, and guy hardware quoted alongside if you want the assembly complete, typically within one working day.
After You Order
Thread, length, and rating confirmation before production, batch test reports and galvanizing certificates with shipment, extensions kitted with their anchors and guy hardware, and an engineering contact who answers quickly because the anchor holds the stay, and a supply question on the connection shouldn’t hold up the guy.
