Description
The Screw-In Guy Anchor Turned In, Not Dug or Driven
Some guy anchors are driven, some are drilled, some are dug. A No-Wrench Screw Anchors is turned in: a helix at its end screws into the soil like a giant screw, pulling the anchor down to depth, then bearing against the undisturbed soil to hold the guy. No excavation, no backfill and, as the name says, no hand-wrenching: it’s turned in by a powered driver, fast and with far less labor than wrenching an anchor down by hand.
For suitable soils, that combination screw straight in, no digging, machine-turned makes the screw anchor one of the quickest guy anchors to install, holding from undisturbed ground the moment it’s set. This page covers no-wrench screw anchors: how the screw-in works, what “no-wrench” means, when they’re the right choice, and how they connect to the guy.
How the Screw-In Works and What “No-Wrench” Means
The screw anchor holds by turning in and bearing:

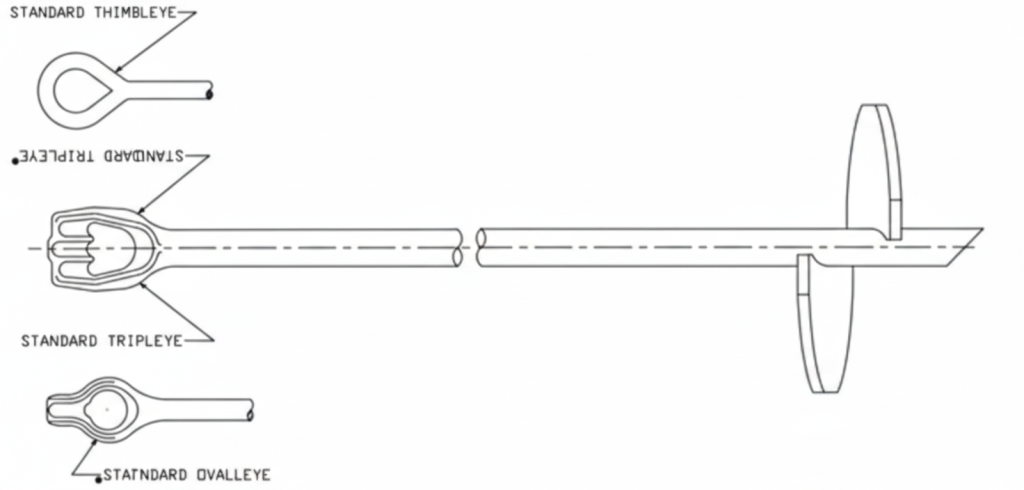

- The helix (the screw plate near the top of the shaft) is turned into the soil, and like a screw it pulls the anchor down to depth as it rotates.
- Once at depth, the helix bears against the undisturbed soil above it, resisting the guy’s pull holding capacity from undug ground, the moment it’s set.
- “No-wrench” means it’s installed without a hand wrench turned in by a powered driver / machine, so it goes down fast without the heavy manual labor of wrenching an anchor into the ground. That’s the install-speed advantage in the name.
The result is a fast, no-excavation guy anchor that holds from undisturbed soil and needs no digging, backfill, or hand-wrenching.
When Is a Screw Anchor the Right Choice?
The ground decides, and the screw anchor’s territory is suitable soils it can turn into:
- Suitable soils (that the helix can screw into) → the screw anchor fast, machine-turned, no excavation, holds from undisturbed ground.
- Most soils (driven) → a drive/plate anchor.
- Rock / very hard ground → an expanding rock anchor (a screw can’t turn into rock).
- Soft to medium soil (bearing) → a disk anchor.
The screw anchor’s advantage is install speed in soils it suits machine-turned, no dig, holding immediately. Where the ground is too hard to screw into (rock), or where another type bears better, we’ll route you to the right anchor. Matching the anchor to the ground is the key guy-anchor decision, and the screw anchor is the fast answer for suitable soils. Send the soil and the guy load and we’ll match it.
Why Buyers Choose DAPENG No-Wrench Screw Anchors
- Fast, machine-turned install: Screwed in by a powered driver no excavation, no backfill, no hand-wrenching quick across many guys.
- Holds from undisturbed soil: The helix bears against undug ground, developing holding capacity immediately on setting.
- Rated to your guy load: Holding capacity matched above your guy’s working tension with your margin.
- Hot-dip galvanized for buried service: Helix and shaft galvanized for the below-grade soil environment.
- Eye to the guy hardware: The surface eye takes the guy grip/clamp via an eye nut or connects through an anchor rod the whole stay from one source.
Use-Case Deep Dive
Why screw in instead of drive or dig?
Because in soils it suits, screwing in is fast and low-labor: the helix pulls the anchor down as it turns, so there’s no driving impact, no hole to dig, no backfill, and being machine-turned no hand-wrenching. It holds from undisturbed soil the moment it’s at depth. A drive anchor is also fast and covers more soils; the screw anchor’s niche is the quick, machine-turned set in suitable ground. Where the soil is too hard to screw into, it’s not the tool that’s the rock anchor.
What soils can it screw into?
Soils soft enough for the helix to turn in but firm enough to hold the bearing load a range of common soils, but not rock or very hard/stony ground (a screw can’t penetrate those; use the rock anchor), and very soft ground may hold less (a disk anchor may bear better). The screw anchor suits the middle tunable, holding soils. Send the soil description and the guy load and we’ll confirm whether the screw anchor suits, and its capacity.
How does it connect to the guy?
Through the eye at the surface end. The guy grip or clamp terminates the strand to the eye, often via an eye nut; a deep-set anchor may connect through an anchor rod. We supply the anchor with that hardware matched, so the stay is complete from soil to pole.
Specifications and What They Mean for You
| Specification | What we supply | What it means for the buyer |
|---|---|---|
| Type | Screw-in helix guy anchor | Turned in fast, no excavation |
| Install | Machine-turned, no hand-wrench | Quick, low-labor setting |
| Ground | Suitable (tunable) soils | Fast in the soils it suits |
| Holding capacity | Above your guy tension | Holds the guy from undisturbed soil |
| Coating | HDG to class | Survives below-grade in soil |
| Interface | Eye to guy hardware | Connects to the stay assembly |
Straight Answers to Common Buyer Concerns
“What does ‘no-wrench’ mean?” It means the anchor is installed without a hand wrench it’s turned into the soil by a powered driver / machine, so it goes down fast without the heavy manual labor of wrenching an anchor into the ground by hand. That’s the install-speed advantage: a screw anchor set quickly by machine, holding from undisturbed soil the moment it’s at depth.
“Will it hold my guy?” In suitable soil, yes the helix bears against the undisturbed ground above it, developing holding capacity matched above your guy’s working tension with your margin. In rock it won’t screw in (use the rock anchor); in very soft ground another type may bear better. Send the soil and the guy load and we’ll confirm the screw anchor suits and its capacity.
“Which anchor for our ground?” Match to the soil: suitable tunable soil → this screw anchor (fast, machine-turned); most soils → drive anchor; rock → rock anchor; soft-medium → disk anchor. Send the ground and guy load and we’ll match the anchor and its capacity all to the same guy hardware.
Complete the Stay
- Drive/plate anchors, expanding rock anchors, disk anchors the anchors for other ground
- Anchor rods, eye nuts the rod and connection to the guy
- Guy grips, guy clamps, guy wire the guy hardware above
- Ground anchors the full anchor and earthing category
- Browse all pole line hardware and overhead line fittings
Get a Ground-Matched Quote Within 24 Hours
Send the soil conditions, the guy load, the anchor-to-guy interface you use, and quantities. Our engineers confirm the screw anchor and its holding capacity for your ground, and return a factory-direct quotation with the stay hardware alongside, typically within one working day.
After You Order
Type and capacity confirmation before production, documentation with shipment, anchors kitted with their stay hardware, and an engineering contact who answers precisely because the anchor holds the guy that holds the pole, and a screw anchor turned into suitable soil is one of the fastest holds on the line.
